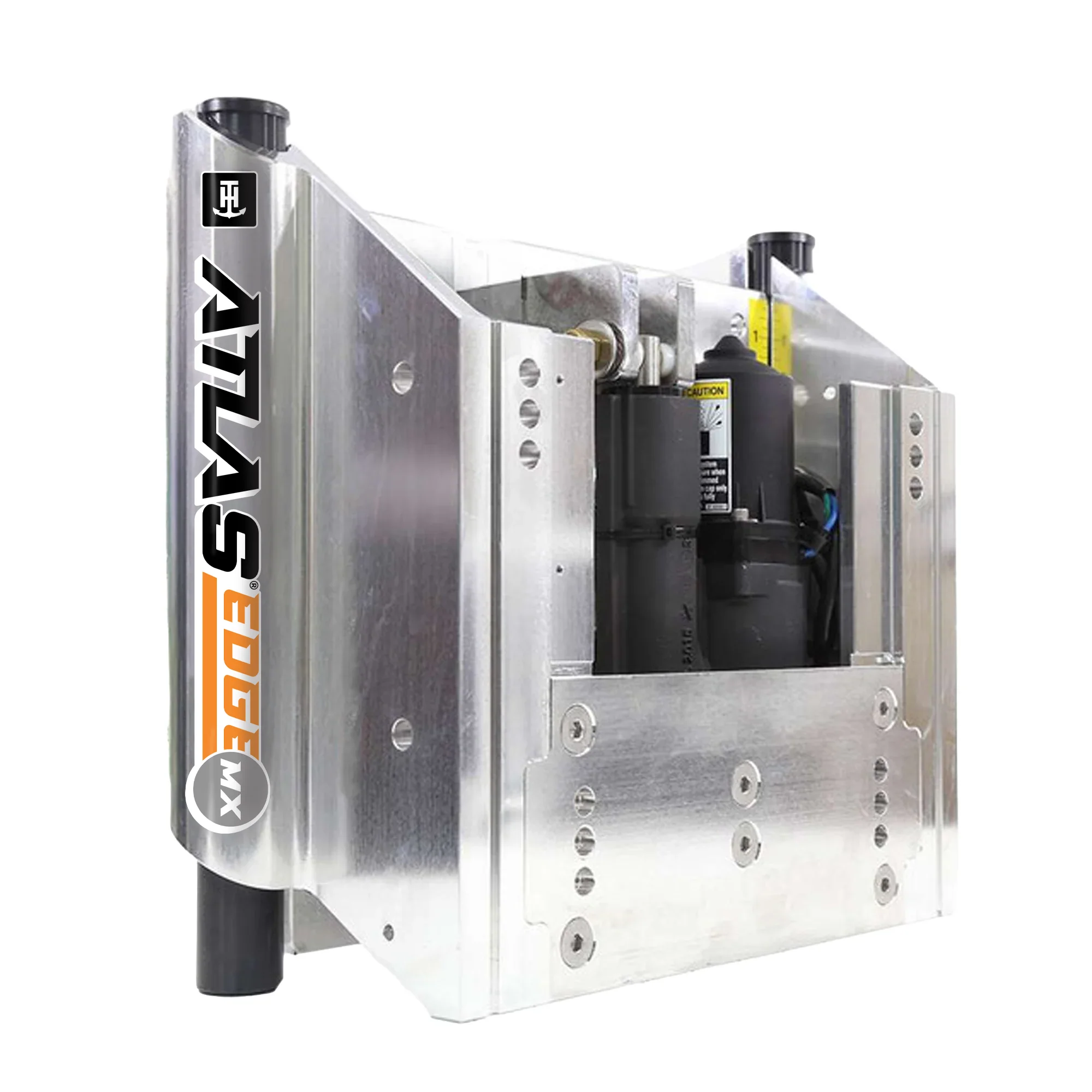

The T-H Marine Atlas™ Edge MAX Hydraulic Jack Plate (AHJE-6GX-DP) is purpose-built for the largest, heaviest high-performance outboard applications. Developed in collaboration with Power-Pole®, this next-generation jack plate brings intelligent, brushless-motor-driven height control to demanding installations, combining a wide-frame construction with a 6" setback and a maximum engine weight capacity of 1,000 lbs.
At the core of the Atlas™ Edge system is One-Touch Height Control, giving operators instant access to three fully customizable height presets — ideal for takeoff, running, and fishing or trailering positions. A double-tap function enables rapid full-speed movement, while three selectable lift speeds (Slow, Medium, and Fast) allow fine-tuned control to match varying water conditions and personal preferences.
The integrated Smart Gauge provides a visual speed indicator and convenient, customizable jack plate management right at your fingertips. The sealed hydraulic unit is maintenance-free, and the high-performance brushless motor delivers ultra-fast lift speeds with quiet, reliable operation.
Key Features:
- MAX configuration engineered for extremely heavy outboard installations
- Wide-frame design with 6" setback for expanded engine support
- Hydraulic rise: 5.75"
- Total rise: 8.25" – 9.75"
- Maximum engine weight capacity: 1,000 lbs.
- Rated for outboards up to 450 HP
- High-performance brushless motor — quiet, fast, and zero-maintenance
- One-Touch Height Control with three customizable height presets
- Three selectable lift speeds: Slow, Medium, and Fast
- Visual speed indicator displays current lift-speed setting
- Double-tap controls for rapid full-speed movement
- Smart Gauge for convenient, customizable control
- Sealed hydraulic unit — no routine maintenance required
- Silver finish
The Atlas™ Edge MAX raises the bar for performance-oriented boaters who need maximum lift capacity, smart controls, and reliable hydraulic power in a single integrated package.
