The Egis Mobile Electric XD Flex 1 Dual Relay/ACR (8820-1110) is a high-performance, dual-circuit bi-stable relay and automatic charging relay (ACR) designed for marine, RV, and mobile power systems. Featuring an extremely compact footprint and a 500-amp continuous current rating per relay, it delivers professional-grade battery management in demanding 12V and 24V electrical systems.
Each relay position is fully configurable via on-board DIP switches, allowing the installer to set up each circuit independently as a standard battery disconnect relay, an automatic charging relay (ACR), or a low voltage disconnect (LVD). This flexibility makes the XD Flex 1 an ideal solution for single- and multi-engine installations alike.

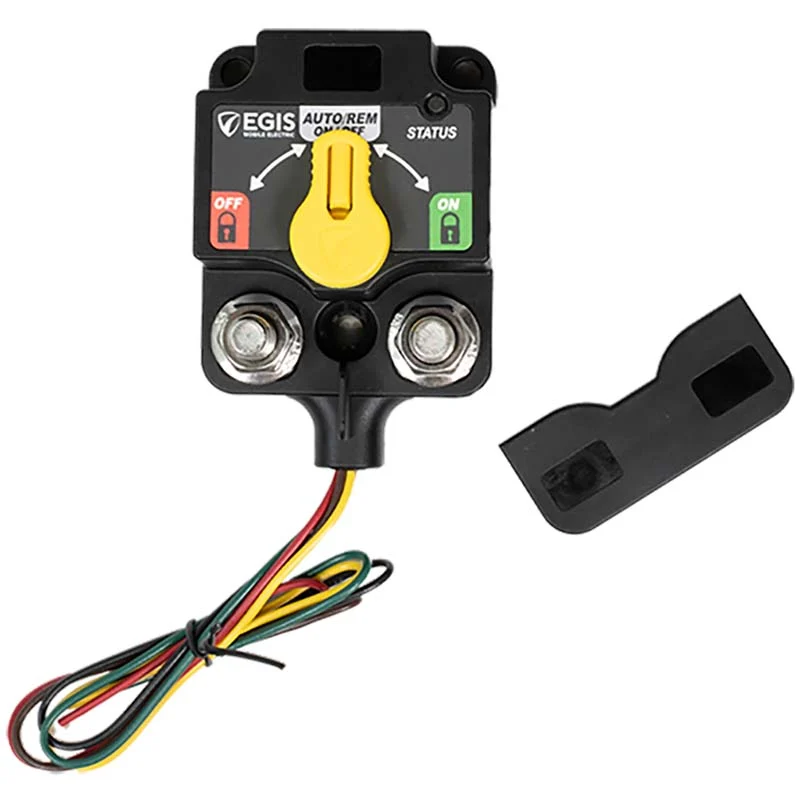

This version includes the intuitive front-facing manual override knob, which allows the user to manually lock each relay ON or OFF for servicing—a feature not commonly found on competing products. The sealed 6-pin Deutsch DTM connector provides a weather-tight plug-and-play connection for the control wiring harness.
Key Features:
- 500A continuous current capability per relay with up to 1,500A cranking current
- Dual-circuit design — each position independently configurable as a Relay/Battery Disconnect, ACR, or Low Voltage Disconnect via DIP switches
- Front-facing manual override knob with ability to lock relays ON or OFF for servicing
- Supports single and multiple engine installations with dual start/engine isolation inputs
- Remote ON/OFF/Auto inputs for forced open, forced close, or voltage-sensing automatic operation
- Local and remote LED indicators for relay state awareness
- Wide operating voltage range: 8–36V DC, auto-ranging for 12V and 24V systems
- Ultra-low off-state quiescent current draw: 1.3mA
- Sealed to IP67/IP6K9K — mountable in harsh, high-temperature environments
- Integrated Gore-Tex vent to regulate internal pressure and prevent moisture ingress
- Plug-and-play compatible with legacy Blue Sea Systems ML-Series bi-stable relays (pin-for-pin DTM compatible)
- Stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 hardware
- Protective terminal cover included with label recesses for easy wire identification
- Mechanical switching life: 1,000,000 cycles
The Egis XD Flex 1 delivers a 35–75% reduction in mounting space and product weight compared to traditional relay layouts, making it an outstanding choice for space-constrained installations on boats, RVs, commercial vehicles, and overland builds.
