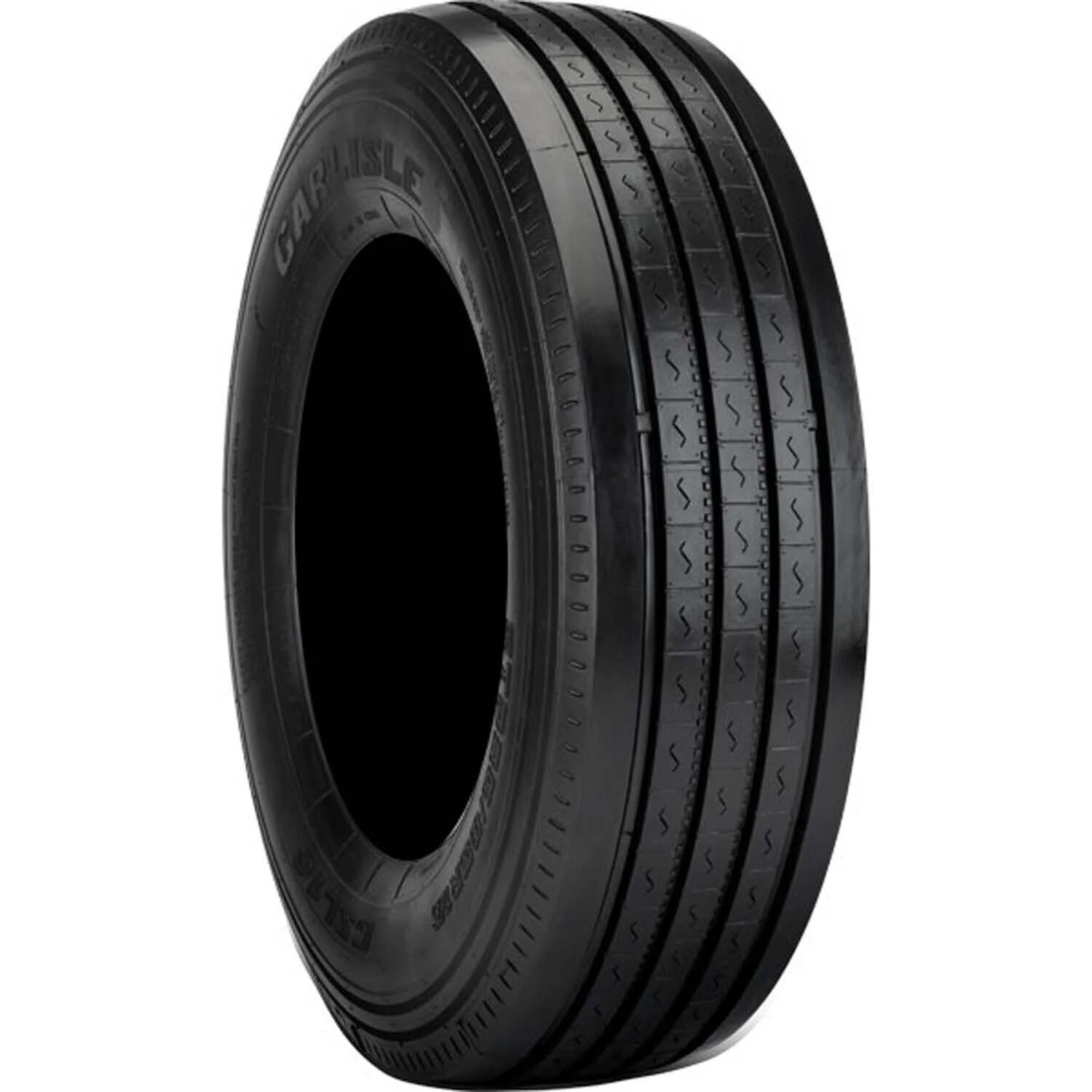

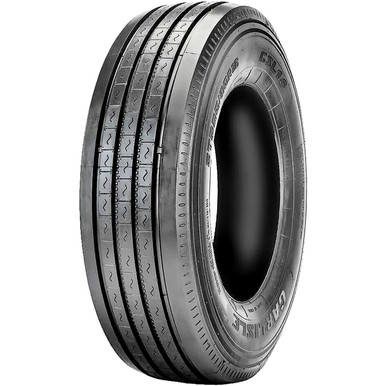

Carlstar 6H08106 CSL 16 ST235/80R16 Load Range G 14-Ply Trailer Tire

The Carlstar CSL 16 is a heavy-duty, all-steel radial trailer tire engineered for demanding hauling applications. Built to handle large equipment and extremely heavy loads, this ST235/80R16 tire carries a Load Range G (14-ply) rating and is purpose-designed for extended highway use.

Key Features:

• All-steel construction — Full steel body and casing maintains tire shape under load pressure and provides superior durability over standard trailer tires
• Heavy-duty load capacity — Rated up to 4,080 lbs (single) at 110 PSI maximum inflation pressure
• Five-rib ribbed tread pattern — Enhances controllability, steering stability, and consistent road contact throughout the service life
• In-block sipes — Provide reliable traction in dry, wet, and cold weather conditions
• Four circumferential grooves — Efficiently evacuate water and slush to actively resist hydroplaning
• Enhanced shoulder biting edges — Improve all-season stability and cornering confidence
• Industrial highway tread design — Optimized for long service life in high-mileage highway trailer applications
• Load Range G / 14-ply rated — Delivers performance beyond standard Load Range E trailer tires
• Speed Rating M — Rated for sustained highway towing speeds
• Black sidewall (BSW) finish

Specifications:

• Tire Size: ST235/80R16
• Load Range: G
• Ply Rating: 14
• Speed Rating: M
• Service Description: 129/125M
• Max Load (Single): 4,080 lbs
• Max Inflation: 110 PSI
• Mounted Diameter: 30.6 in.
• Mounted Width: 9.0 in.
• Rim Width: 6.0 in.
• Tread Depth: 12/32 in.
• Sidewall: Black

Formerly sold under the Carlisle brand name, the CSL 16 is now manufactured and marketed under the Carlstar banner following Carlstar's acquisition of Carlisle. The tire is sold as a single tire only — rim not included.
