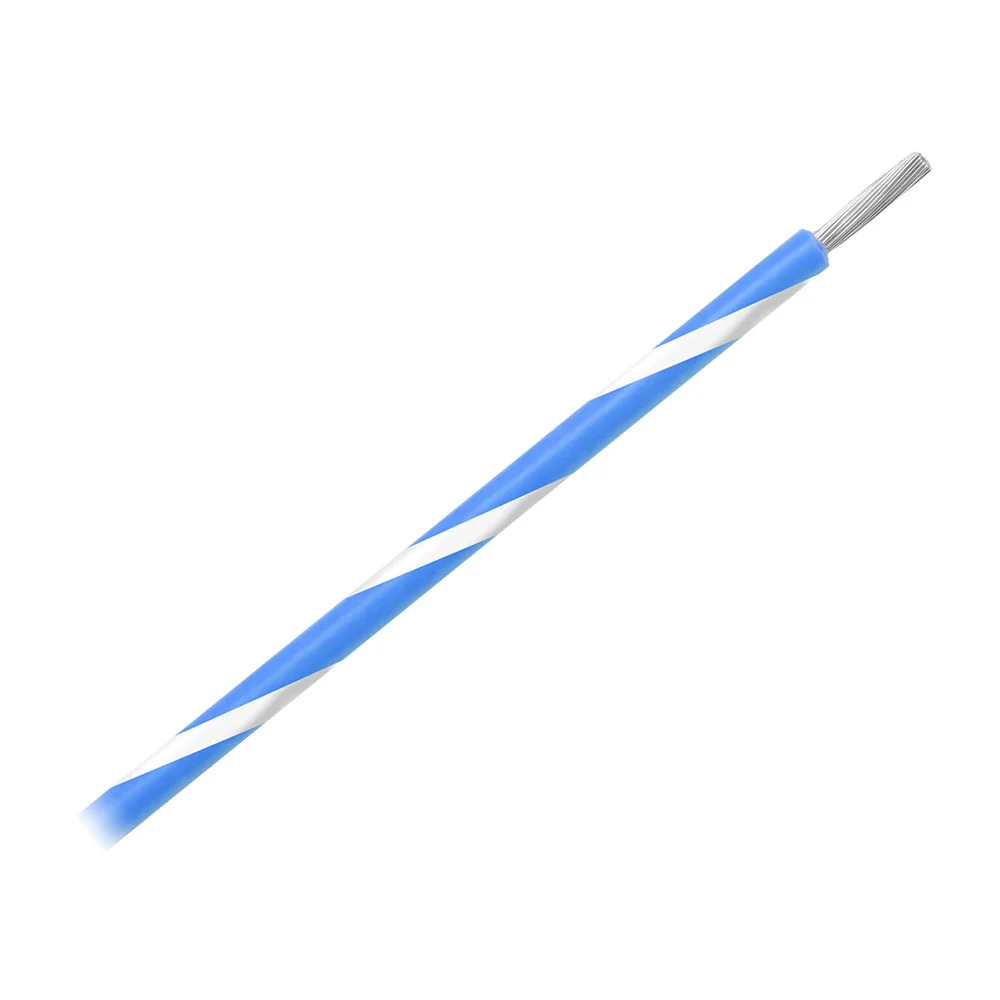

Pacer Performance WUL14BL-9-500 14 AWG Striped Marine Wire 500 ft Spool Blue with White Stripe

The Pacer Performance WUL14BL-9-500 is a 500-foot spool of 14 AWG striped marine-grade primary wire in a blue with white stripe color combination. Striped wire is the ideal solution for complex wiring installations where a large number of conductors are run together — the two-tone color coding makes circuit identification fast and reliable, improving job efficiency and reducing wiring errors.

Key Features:

• Constructed in Sarasota, FL, USA from Type III Class K annealed finely stranded tinned copper (ASTM B172)
• Tinned copper conductors resist corrosion for long-term durability in harsh marine environments
• Jacketed with flexible, color-coded PVC insulation rated from -20°C to 105°C
• Highly flexible — suitable for tight routing through panels, conduit, and bulkheads
• Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
• 500-foot spool with blue base color and white stripe for two-color circuit identification

Specifications:

• Gauge: 14 AWG
• Conductor Stranding: 41/0.0100
• Nominal O.D.: 0.145 in
• Nominal Circular Mils: 4,100
• Insulation Thickness: 0.032 in
• Voltage Rating: 600V
• Temperature Rating: 105°C Dry / 75°C Wet / 60°C Oil
• Color: Blue with White Stripe
• Length: 500 feet per spool

Compliances & Standards:

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230 & AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14
• U.S. Coast Guard: 33 CFR Part 183
• NMMA Certified

Applications:

• Point-to-point wiring in boats and marine equipment
• Internal wiring of electrical panels and motors
• Any multi-wire installation requiring reliable color-coded circuit identification

Pacer's striped marine primary wire is manufactured to meet and exceed the most stringent marine electrical standards, making it a trusted choice among marine electricians and boatbuilders across the industry.
