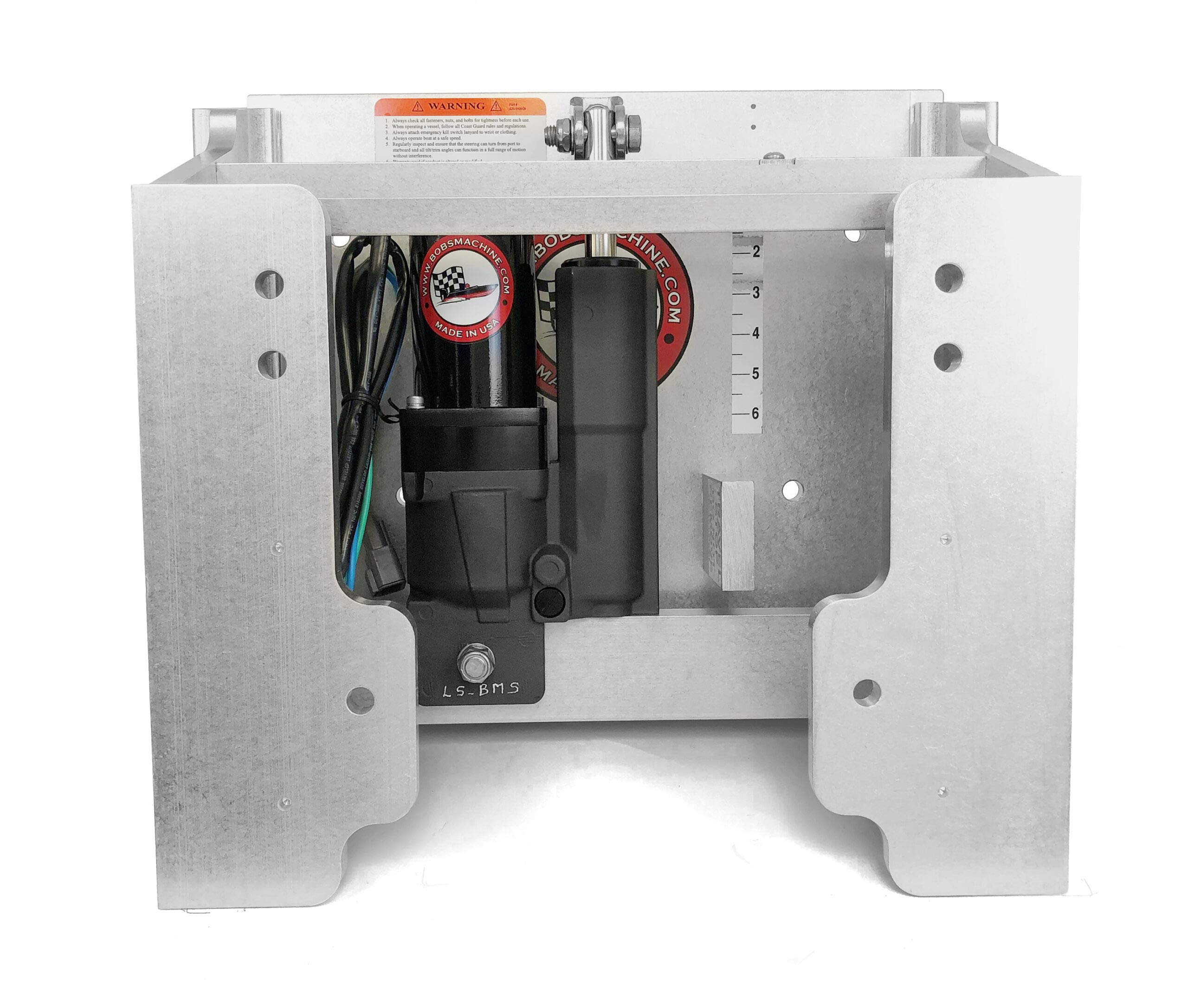

Bob's Machine 100-608002P-PCGBLK-NOSPN-NG 8" Extreme Gen 3 Standard Series Hydraulic Jack Plate - Gloss Black Powder Coat

The Bob's Machine Shop Extreme Gen 3 Standard Series Hydraulic Jack Plate with an 8" setback is engineered for serious boaters running high-horsepower outboards. Re-engineered from the ground up to handle 550+ HP engines including V8 and V10 configurations weighing 1,000+ lbs, this jack plate represents the strongest design in Bob's Machine Shop history.

This unit comes finished in a gloss black powder coat, applied using a multi-step process: metal etching, a mil-spec epoxy primer coat, and a final powder color layer for lasting protection and a clean appearance at the transom. The remote-mount pump and hoses are sold separately (NOSPN = No Spinner/No Pump included).

Key Features:

• 8" setback for optimized motor positioning and performance
• Rated for 550+ HP / 1,000+ lb outboard motors, including V10 engines
• Supports motors up to a 15" mounting width; wider motors like the Yamaha XTO may require optional 1" spacers
• Wider Gen 3 frame allows Mercury Verado installation without spacers
• Automotive-style grease nipples in side rails for easy maintenance
• Tension rods for added structural rigidity
• Gloss black powder coat finish with mil-spec epoxy primer base for corrosion resistance
• Remote-mount pump configuration — pump and hoses not included
• Available setbacks: 4", 6", 8", 10", and 12" to suit a wide range of applications

Jack Plate Benefits:

• Improves outboard boat top-end speed and holeshot
• Enhances fuel efficiency by optimizing motor height and trim angle
• Allows navigation in shallow water by raising the motor vertically
• Benefits both fishing boats and offshore performance boats

The Extreme Gen 3 Standard Series is the ideal choice for tournament anglers and offshore boaters demanding maximum performance from today's heaviest, most powerful outboard motors. OEM cross-reference: 100-608002P-PCGBLK-NOSPN-NG.
