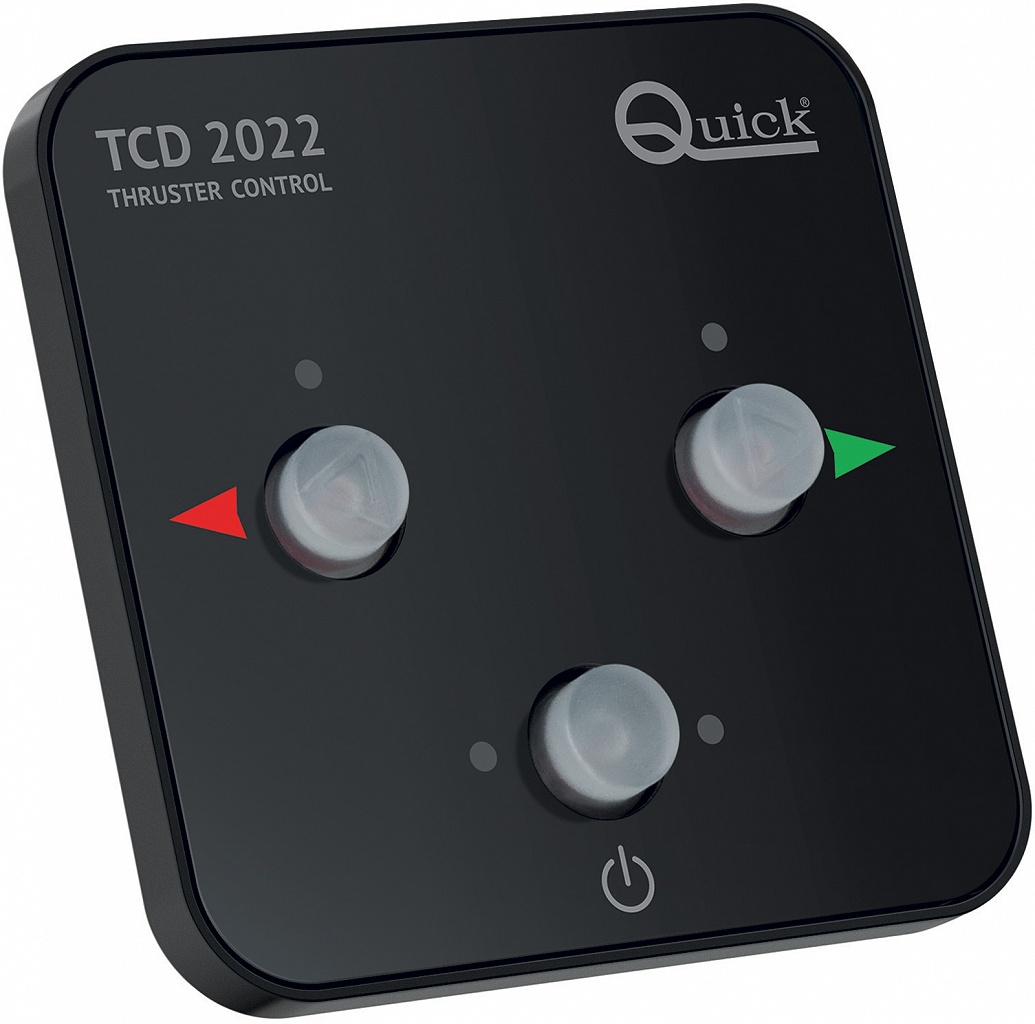

Quick FNTCD2022000B00 TCD2022 Push Button Bow & Stern Thruster Control Panel

The Quick TCD2022 is a compact, push-button remote control panel designed to operate Quick bow and stern thruster systems with simplicity and precision. Manufactured in Italy, the updated TCD2022 features a scratch-resistant glossy Lexan panel that matches the modern aesthetic of the QNC Quick Nautical Control command series. Installation is fast and tool-friendly — traditional screws are replaced by a special 3M VHB double-sided gasket, and the panel connects via a straightforward 2-wire connector (optional extensions available).

Rated IP66 waterproof, the TCD2022 is built for demanding marine environments and can operate in temperatures from -20°C to +70°C (-4°F to +158°F). Its universal 9–31V DC power supply makes it compatible with both 12V and 24V electrical systems.

Key Features:

• Simple and intuitive push-button user interface
• Universal power supply: 9–31V DC (compatible with 12V and 24V systems)
• IP66 waterproof rating — suitable for exposed outdoor installation
• Multiple TCD control panels can be connected in parallel
• Easy installation via 2-wire connector with optional extensions
• 3M VHB double-sided gasket — no screws required
• Automatic priority system and automatic disablement
• Protection against reverse polarity, output short circuit, prolonged motor activity, and wiring interruption
• Audible acoustic signals (can be deactivated)
• Scratch-resistant glossy Lexan panel

Specifications:

• Thruster command current capacity: 4A max
• Supply voltage: 9–31V DC
• Quiescent current draw: 10 mA
• Operating temperature: -20°C to +70°C
• Protection rating: IP66 (rear of unit is IP20)
• EMC compliance: EN 60945 / FCC Title 47 Part 15 Subpart B Class B
• Dimensions (W x H x D): 74 x 74 x 21.2 mm (approx. 2.91" x 2.91" x 0.84")
• Installation cutout diameter: 61 mm
• Weight: 80 g (0.18 lb)

The TCD2022 is designed specifically for Quick BTQ bow thrusters and compatible stern thruster systems, making it an ideal replacement or additional helm station control for any Quick-equipped vessel.
