Uflex RACKTECH2.016 Racktech 2.0 High Efficiency Rack & Pinion Marine Steering System Kit 16ft Cable

The Uflex Racktech™ 2.0 High Efficiency Rack & Pinion System Kit delivers precise, responsive mechanical steering in a compact package designed for boats with limited clearance behind the dash. The system is built around the TM87O high-efficiency steering cable, which features an armor-wrapped stainless steel core engineered for maximum efficiency and minimal lost motion.

Recommended for power-assisted sterndrives and other applications with minimal rudder torque, the Racktech 2.0 translates steering wheel input directly into crisp, reliable rack-and-pinion action — providing improved feedback and confidence at the helm at any speed.

Key Features:

• Armor-wrapped stainless steel cable core for maximum efficiency and minimal lost motion
• Compact rack-and-pinion design ideal for tight dash installations
• Corrosion-resistant construction throughout
• All stainless steel cable output ends
• Standard 3/4" tapered steering shaft
• 3.5 turns lock-to-lock
• Stroke: 8.2" (210 mm)
• Maximum allowable steering wheel diameter: 16.5" (420 mm)
• Minimum steering cable bend radius: 7.9" (200 mm)
• Exceeds EN 28848 and ABYC P17 safety standards
• 16-foot steering cable included

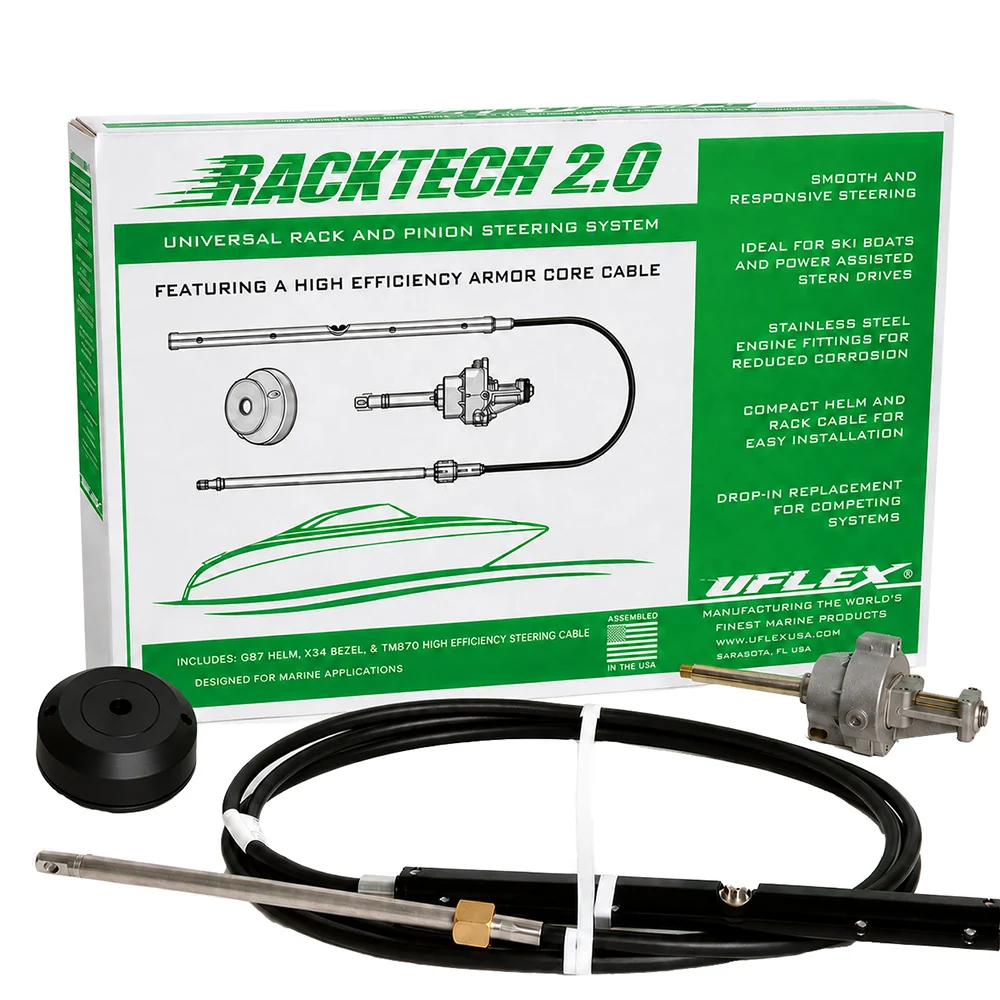

Kit Includes:

• G87 Helm — front-mount rack and pinion helm assembly
• TM870 Preassembled Rack — steering cable pre-attached for simplified installation
• X34 Bezel — 90° dash mounting bezel

The Racktech 2.0 is an excellent choice as a complete replacement steering system for outboard-powered boats, center consoles, runabouts, and ski boats where minimal rudder torque is present. Steering wheel is not included.
