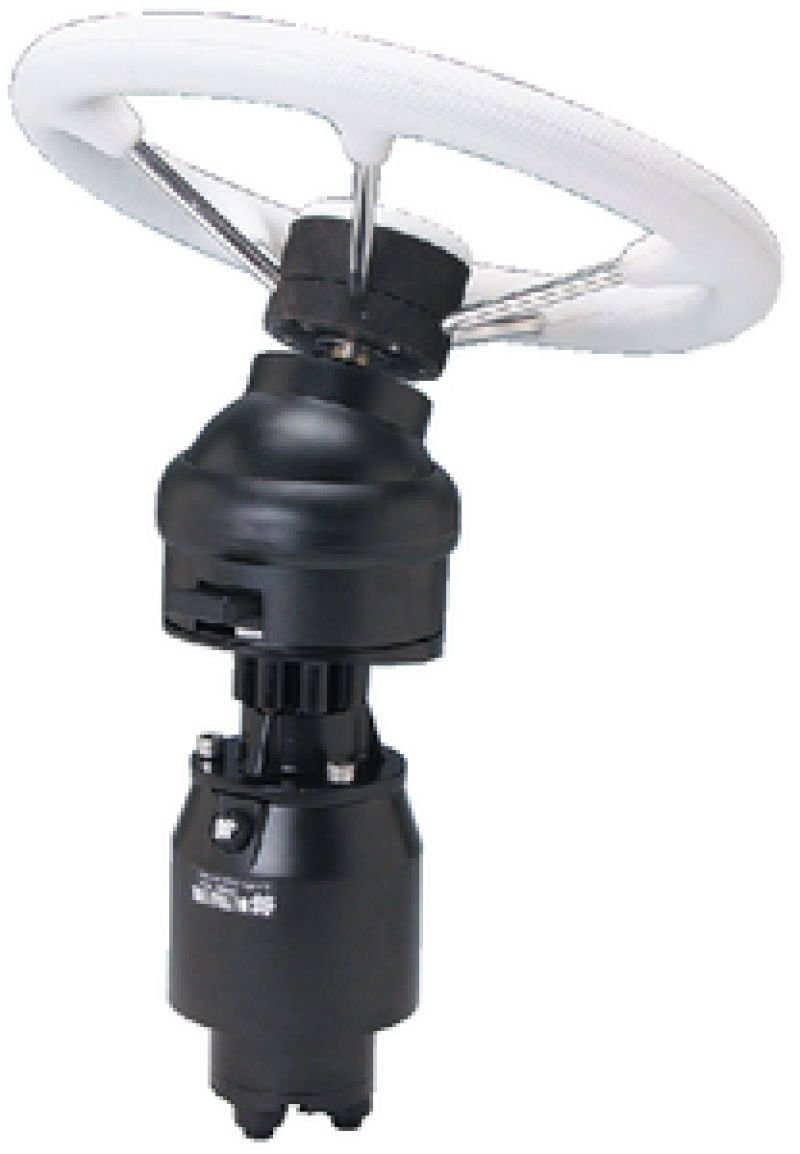

Uflex UP25T-SVS-X83 SilverSteer 1500 PSI 1.5 Cu In Tilt Mount Helm Pump with X83-SVS Mechanism

The Uflex UP25T-SVS-X83 is a high-performance SilverSteer™ tilt mount hydraulic helm pump engineered for demanding outboard steering applications. Rated to 1500 PSI (105 Bar) with a 1.5 cubic inch displacement per revolution, this SVS-series helm delivers precise, responsive steering under extreme rudder torque loads — making it an ideal choice for bass boats, shallow dead-rise hulls, and high-horsepower outboard setups.

The UP25T-SVS-X83 replaces the discontinued UP25T-SVS-X70 and includes the updated X83-SVS tilt mechanism, which provides a 48° adjustment range across five locking positions to accommodate a wide variety of helm installations. The X83-SVS is the dedicated tilt bracket for SilverSteer™ SVS helm pumps.

Key Features:

• 1500 PSI (105 Bar) integral relief valve for over-pressure protection
• 1.5 cu in (25 cc) displacement per revolution with 5-piston design
• Ball bearing piston race for smooth, low-effort steering
• Patented built-in lock valve for positive rudder lock
• Stainless steel shaft for corrosion resistance
• Easily accessible lock valve and shaft seal for serviceability
• Cast iron rotor for greater durability and extended service life
• Includes 90° adjustable nickel-plated brass fittings for 3/8" hose
• X83-SVS tilt mechanism included — 48° range, 5 locking positions
• Maximum steering wheel diameter: 406 mm (16")

Important Compatibility Note: The SilverSteer™ SVS helm pump must be used with a compatible UC130-SVS outboard cylinder and the Kevlar-reinforced KIT OB-SVS hose kit. SVS helms are not compatible with standard UP-series cylinders or hose kits. This is the current replacement for the discontinued UP25T-SVS-X70.
