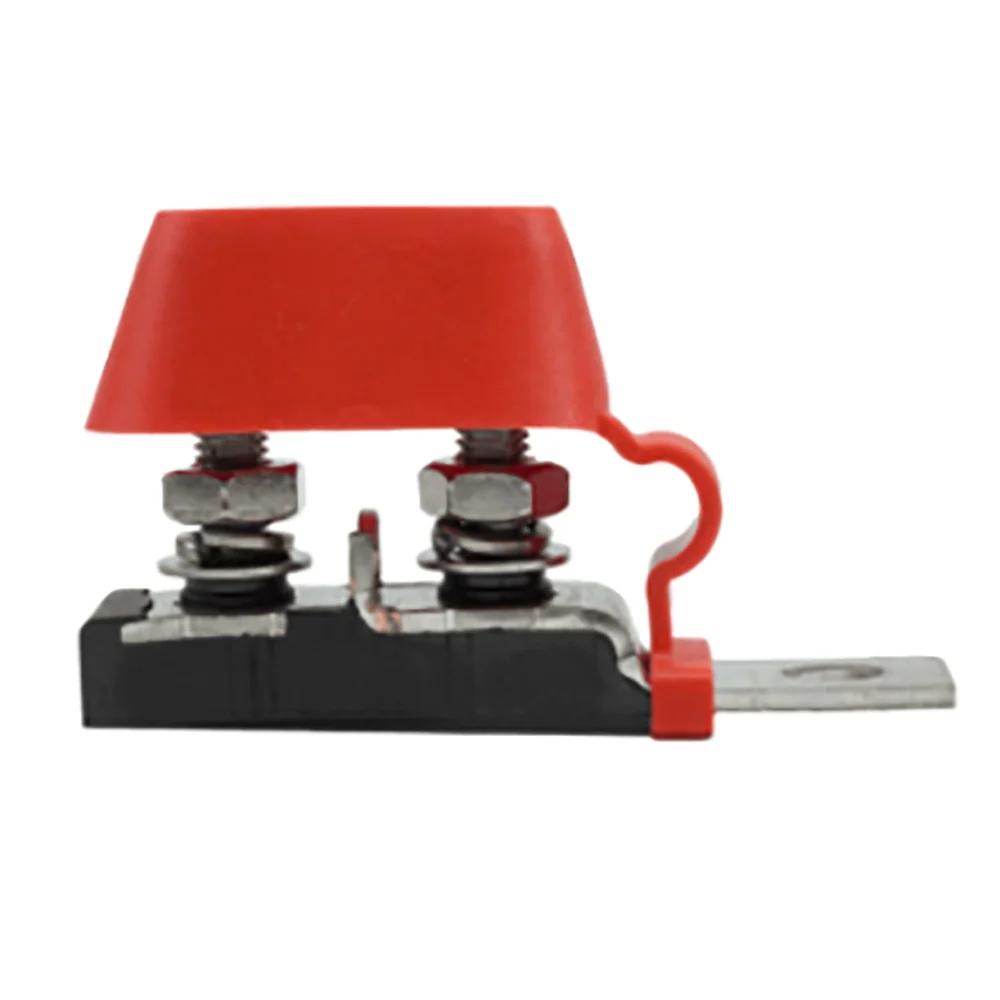

Swift Kompany 3602 MRBF Dual Output Terminal Fuse Block 30-300A

The Swift Kompany 3602 is a dual output MRBF terminal fuse block, also called a marine rated battery fuse holder. It gives compact overcurrent protection for 12V to 48V nominal DC systems. It protects circuits from short circuits and overcurrent loads, which helps prevent wire insulation from overheating and being destroyed. It accepts MRBF fuses from 30A to 300A, and the fuses are not included.

Key Features:

• Dual output design with M8 (5/16") studs for ring terminal connections
• 30-300A continuous current range with a 58V DC rating
• Ignition protected when used with Egis Mobile Electric MRBF fuses, so it is suitable for closed compartments with potentially explosive gases
• Harsh-environment construction that resists shock and vibration, for marine and vehicle electrical systems
• IP66 ingress protection against dust and water intrusion
• Tin-plated copper input for a conductive, corrosion-resistant connection
• Protective red stud cover that helps prevent accidental shorts to ground
• M10 (3/8") mounting hole

Specifications:

• Continuous current: 30-300A
• Maximum voltage: 58V DC
• Stud size: M8 (5/16")
• Mounting hole size: M10 (3/8")
• Interrupt rating: 5,000A at 48V DC and 2,000A at 58V DC
• Ingress protection: IP66

This terminal fuse block suits main battery protection, inverter, windlass and bow thruster circuits in boats, RVs and vehicles where space is limited.
