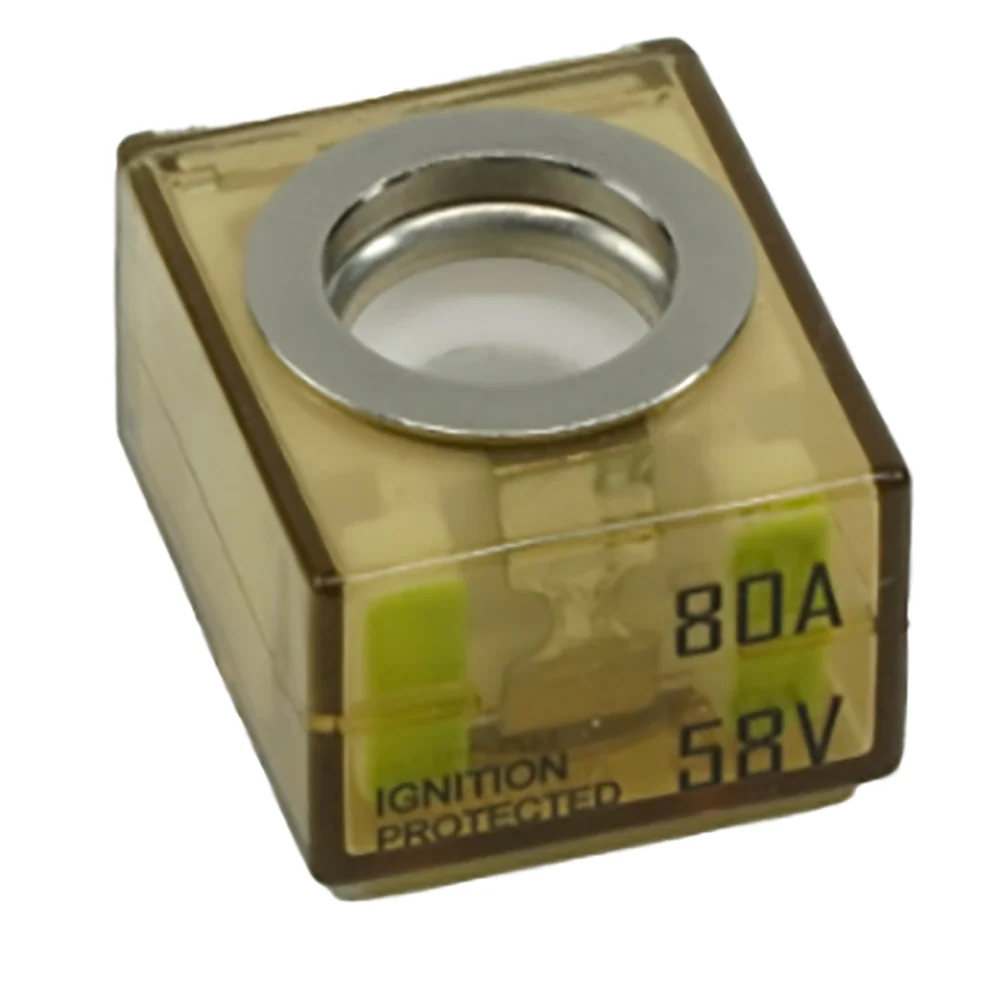

Swift Kompany 3603-080 MRBF Terminal Fuse 80A 58V DC Ignition Protected

The Swift Kompany 3603-080 is an 80 amp MRBF (Marine Rated Battery Fuse) terminal fuse. It protects DC electrical circuits from short circuits and over-current loads. This helps prevent wire insulation from overheating and being destroyed. It suits marine, RV, and vehicle battery and main circuit protection.

Key Features:

• 80 A continuous current rating with a maximum voltage of 58 VDC
• High interrupt rating: 10,000 A at 14 VDC, 5,000 A at 48 VDC, and 2,000 A at 58 VDC. This suits circuits on large paralleled battery banks.
• Ignition protected to SAE J1171 / ISO 8846. It is safe to install in closed compartments where explosive gases may be present.
• Transparent body lets you check the fuse status at a glance
• Color-coded for easy identification of the amperage rating
• IP66 sealed against dust and water intrusion
• Shock and vibration resistant for harsh environments

The high interrupt rating is intended to meet ABYC requirements for DC main circuit protection on larger battery banks. This terminal-style fuse is used in a compatible MRBF terminal fuse block.
