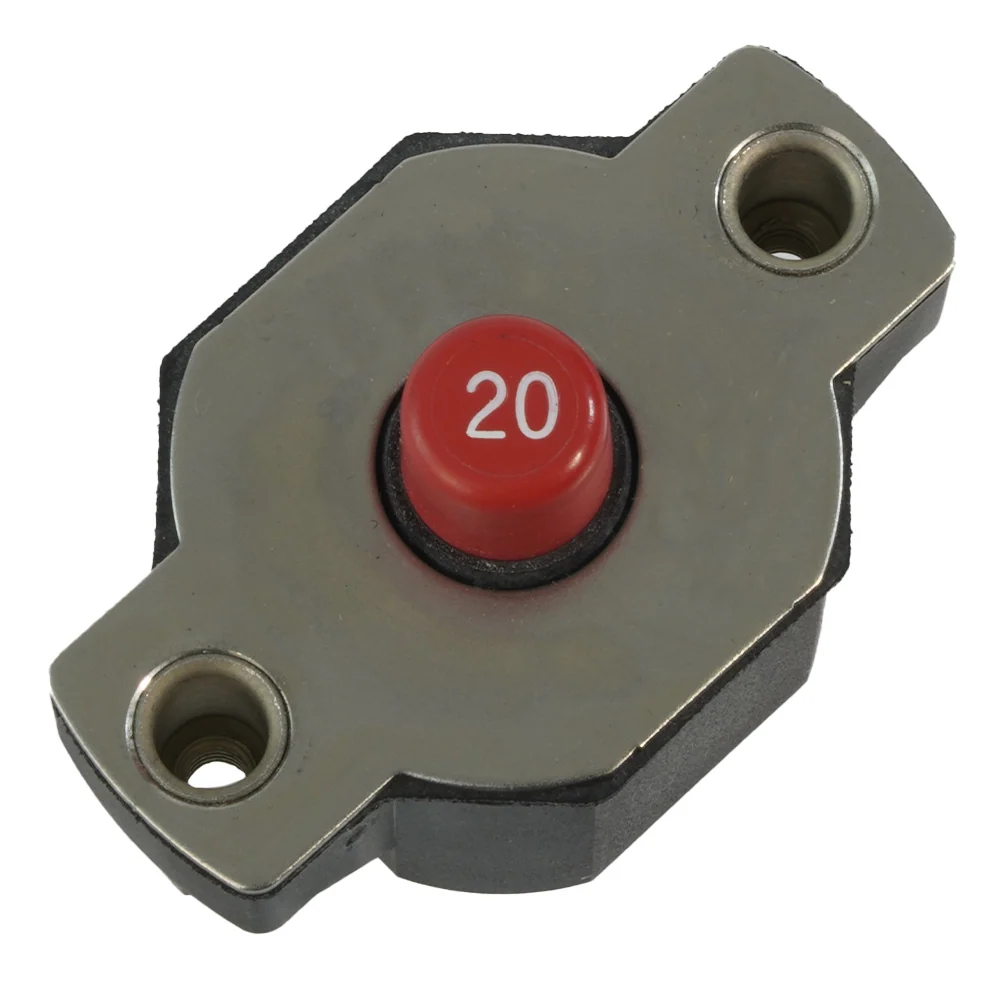

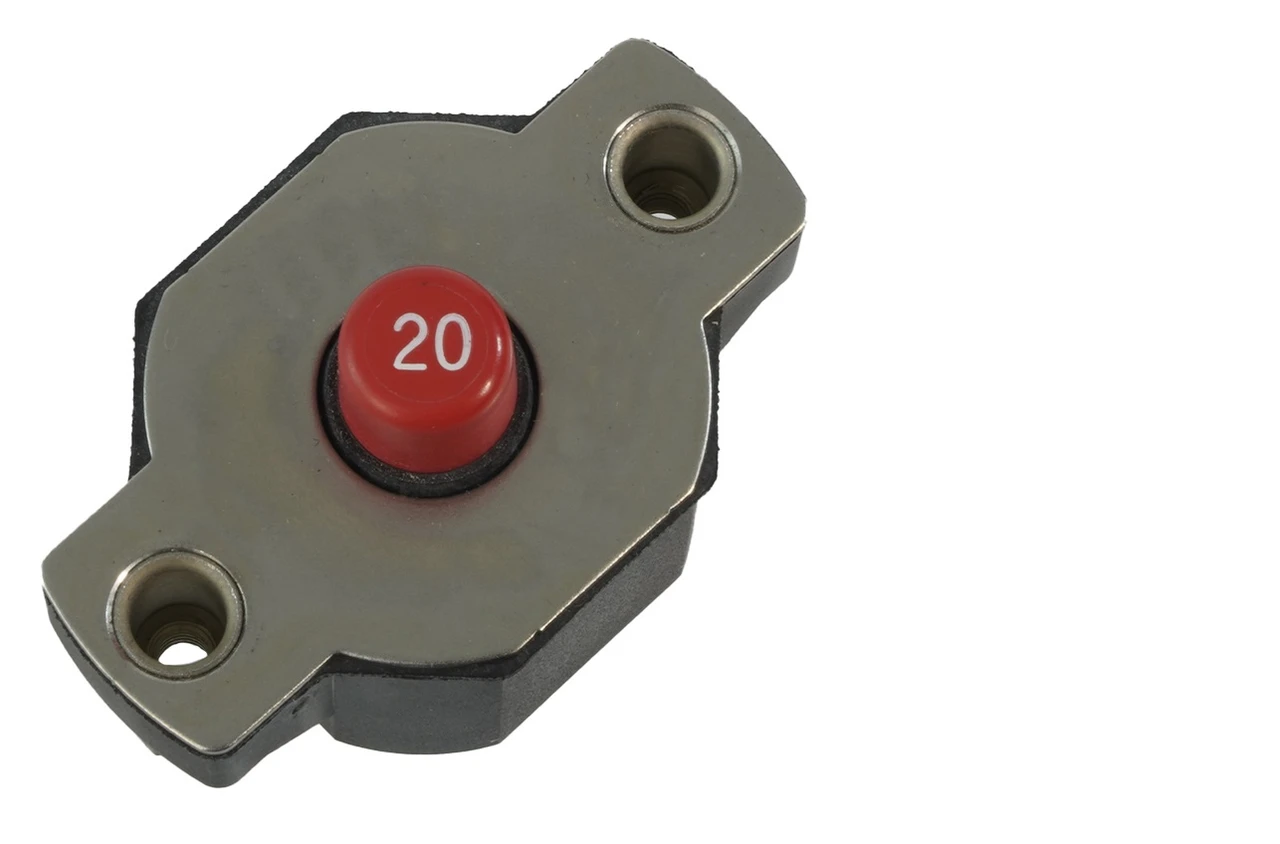

Swift Kompany 4712-20 20A Push Button Circuit Breaker, Reset Only

The Swift Kompany 4712-20 is a 20 amp medium duty push button circuit breaker (manual reset, push-to-reset breaker) for protecting 12 and 24 volt DC circuits. It is sealed against dust and water. This makes it a good fit for marine, RV and other mobile electrical systems.

Key Features:

• 20 amp continuous current rating
• 32 VDC maximum voltage rating, suitable for 12 and 24 VDC systems
• Interrupt current of 3,000 amps at 32 VDC
• Meets ABYC E-11 interrupt requirements
• Trip-free design, so the breaker cannot be forced on during a fault
• Sealed against dust and water intrusion
• Ignition-protected, for installation in closed compartments where explosive gases may be present
• Compact body allows dense panel layouts
• 10-32 mounting nut, with anti-rotation, corrosion-resistant locking hardware
• Rated for 100 cycles of endurance

A breaker gives you reliable overcurrent protection and can be reset with the push button. You don't need to replace a fuse after a fault.
