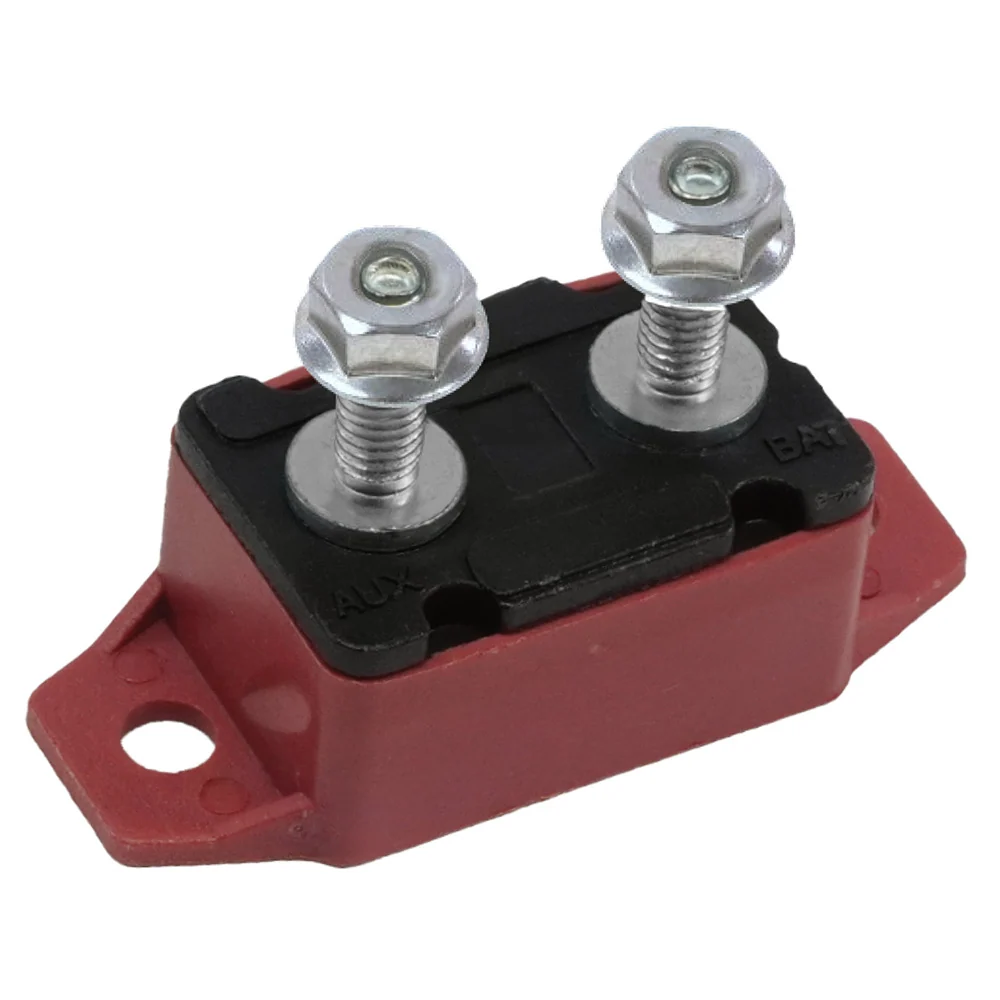

Swift Kompany 4730-10 Short Stop Circuit Breaker 10 Amp 28V DC Manual Reset

The Swift Kompany 4730-10 is a 10 amp Short Stop circuit breaker, also called a surface mount manual reset breaker. It protects 12V and 24V DC electrical circuits from short circuits and over-current loads. A resettable breaker like this one can replace a fuse. It helps keep wire insulation from overheating and being damaged.

Key Features:

• 10 amp continuous current rating, single pole
• Type III manual reset, so power is restored by hand once the fault is cleared
• 28V DC maximum rating, suitable for 12V and 24V DC systems
• Compact surface-mount design for low and medium amperage circuits
• IP66 rated for resistance to dust and water intrusion
• Ignition protected, so it can be installed in closed compartments where explosive gases may be present
• 10-32 stud terminals with stainless steel hardware
• Operating temperature range of -40°F to 185°F
• Red housing

This breaker suits marine, automotive, RV and powersports electrical systems. An optional protective cover is available. It guards against accidental shorts from the breaker studs to other positive studs or ground points.
