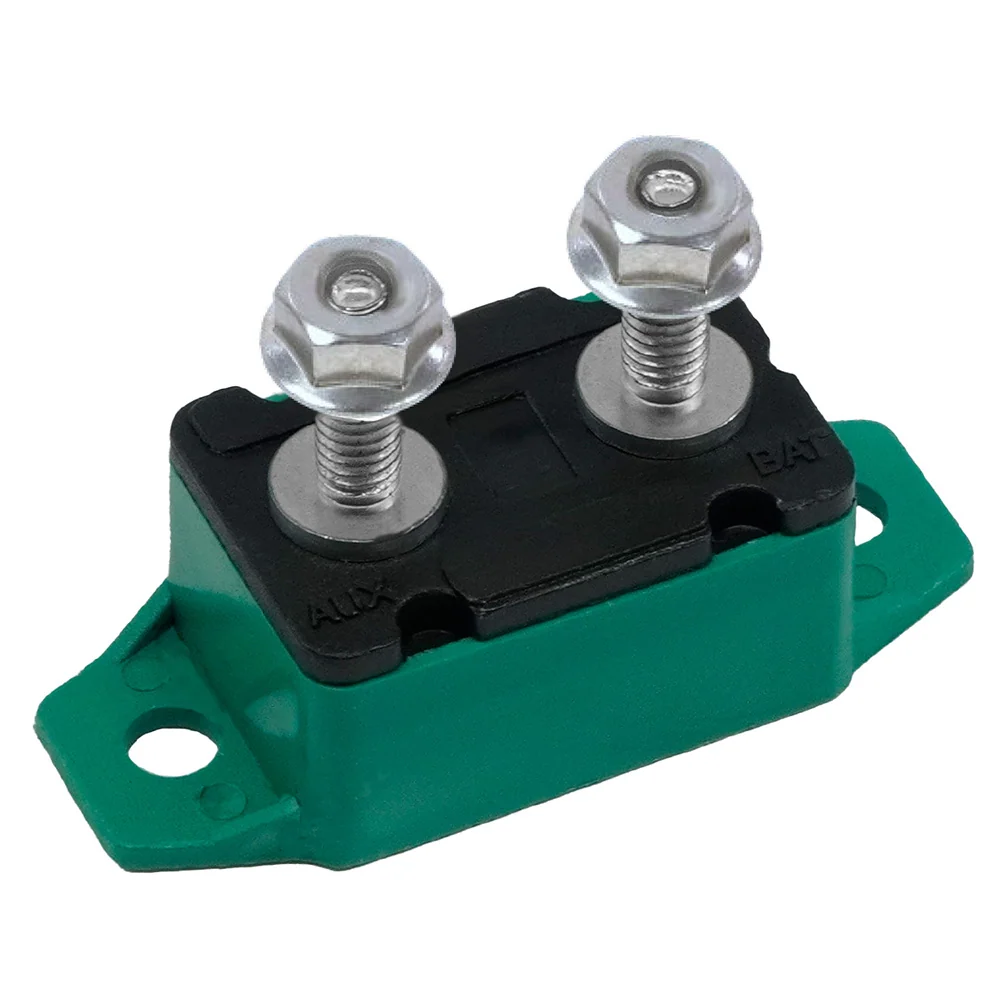

Swift Kompany 4730-30 Short Stop 30 Amp Manual Reset Circuit Breaker

The Swift Kompany 4730-30 Short Stop breaker is a 30 amp surface mount circuit breaker (also called a 30A manual reset breaker). It protects 12V and 24V DC electrical circuits in marine and vehicle systems. It guards against short circuits and over-current loads, which helps keep wire insulation from overheating and being damaged.

Key Features:

• 30 amp continuous current rating for low and medium amperage circuits
• Manual reset (Type III): power is easy to restore once a fault has been cleared
• 28 VDC maximum rating supports 12V and 24V systems
• Compact surface mount design with locking hardware
• Ignition protected: safe to install in closed compartments where explosive gases may be present
• Weather resistant (IP66): sealed against dust and water intrusion
• Harsh environment design resists shock and vibration, suited to marine and vehicle electrical systems
• An optional protective cover is available. It guards against accidental shorts from the breaker studs to other positive studs or ground points.

This resettable breaker is an alternative to fuses for protecting circuits in boats, RVs, trucks and other equipment.
