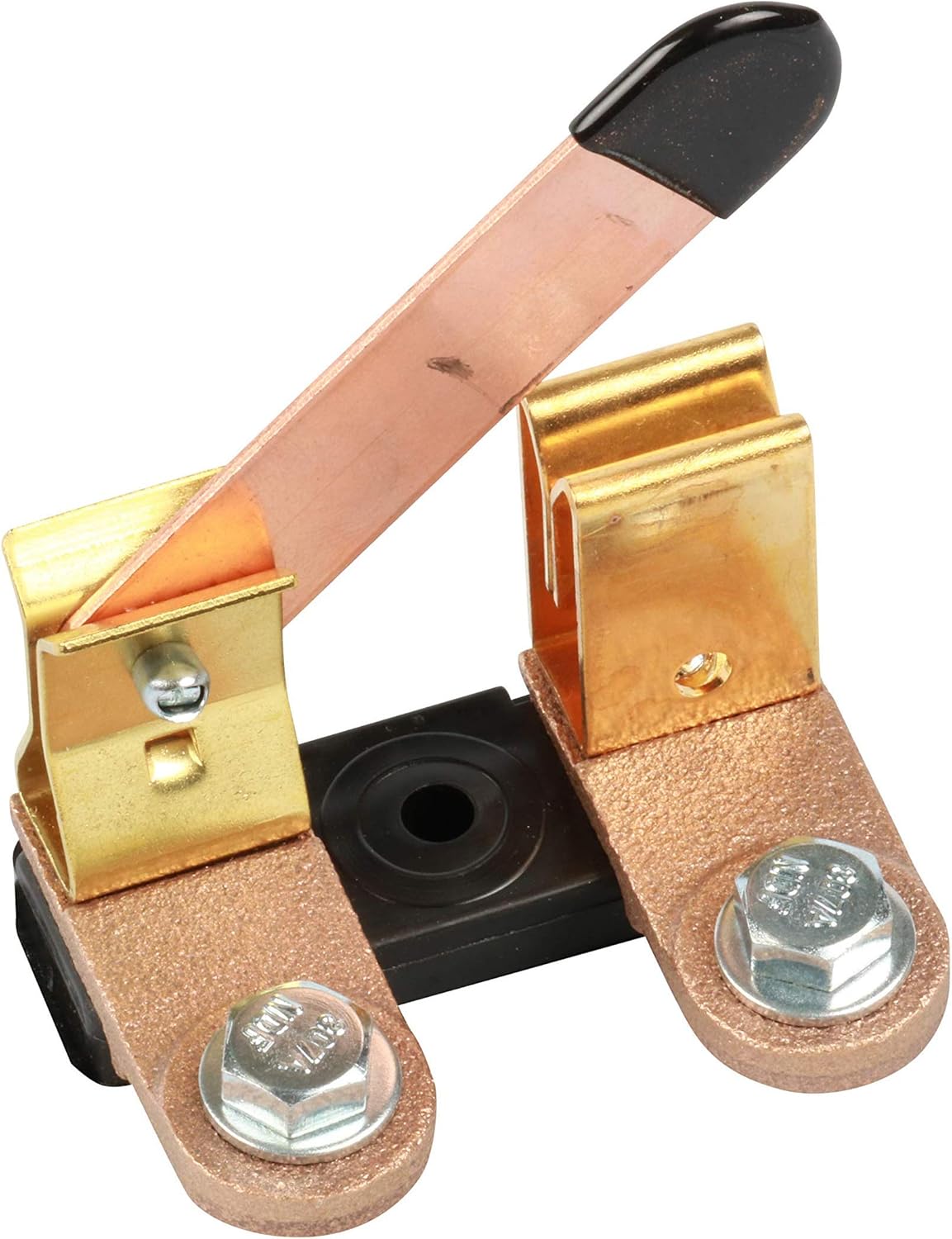

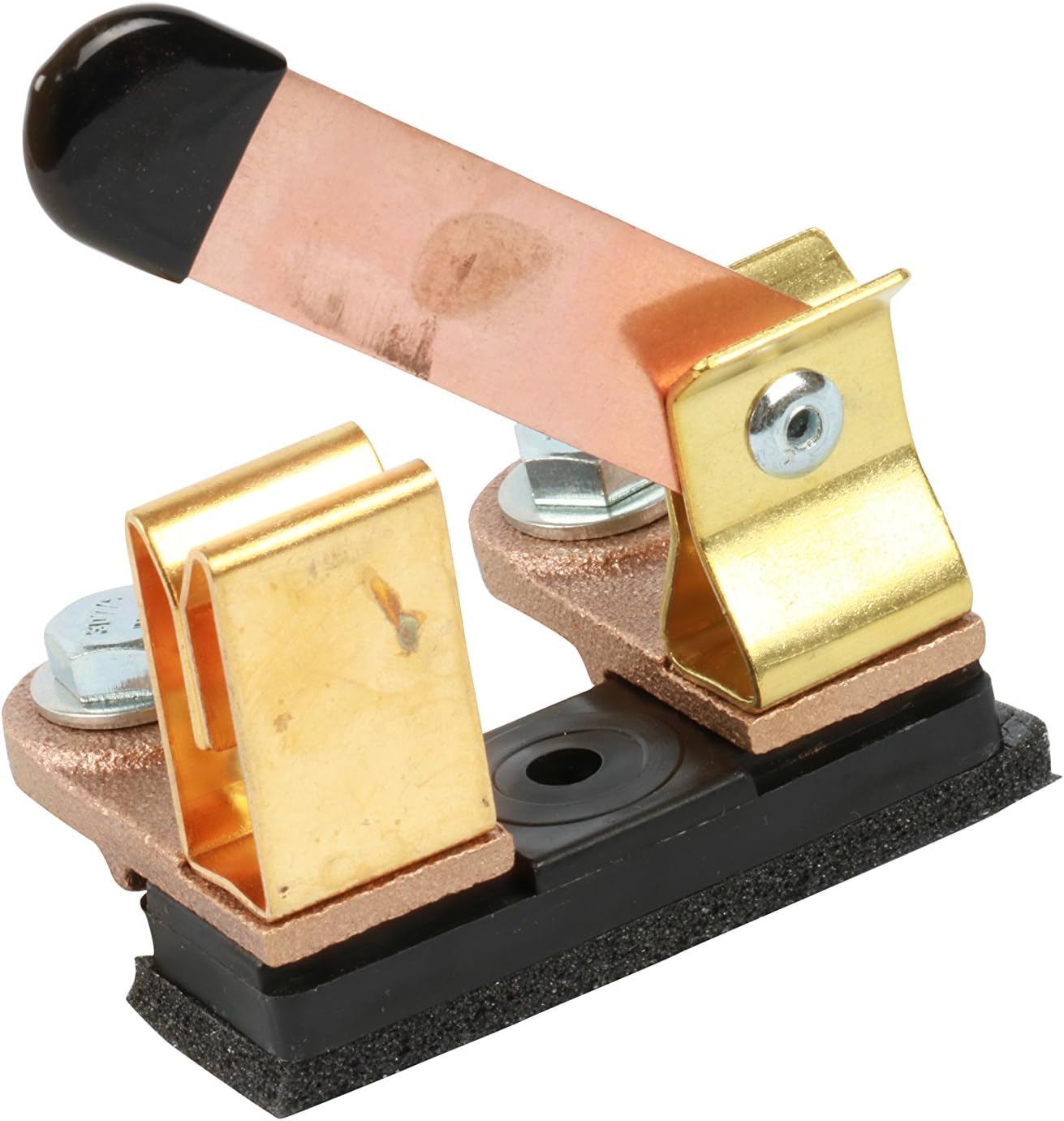

WirthCo 20188 Battery Doctor Remote Mount In-Line Battery Disconnect Switch

The WirthCo Battery Doctor Remote Battery Disconnect Switch is an in-line, surface mountable switch perfect for installations where you have little battery box space. This in-line disconnect mounts under the hood or other location, providing a convenient solution for disconnecting battery power without removing the battery itself.

Key Features:

• Designed to carry 250 amps continuous and 750 amp surge
• Capacity is equal to a #1 AWG battery cable; for all voltage systems
• Does not attach to battery - installs remotely in the cable run

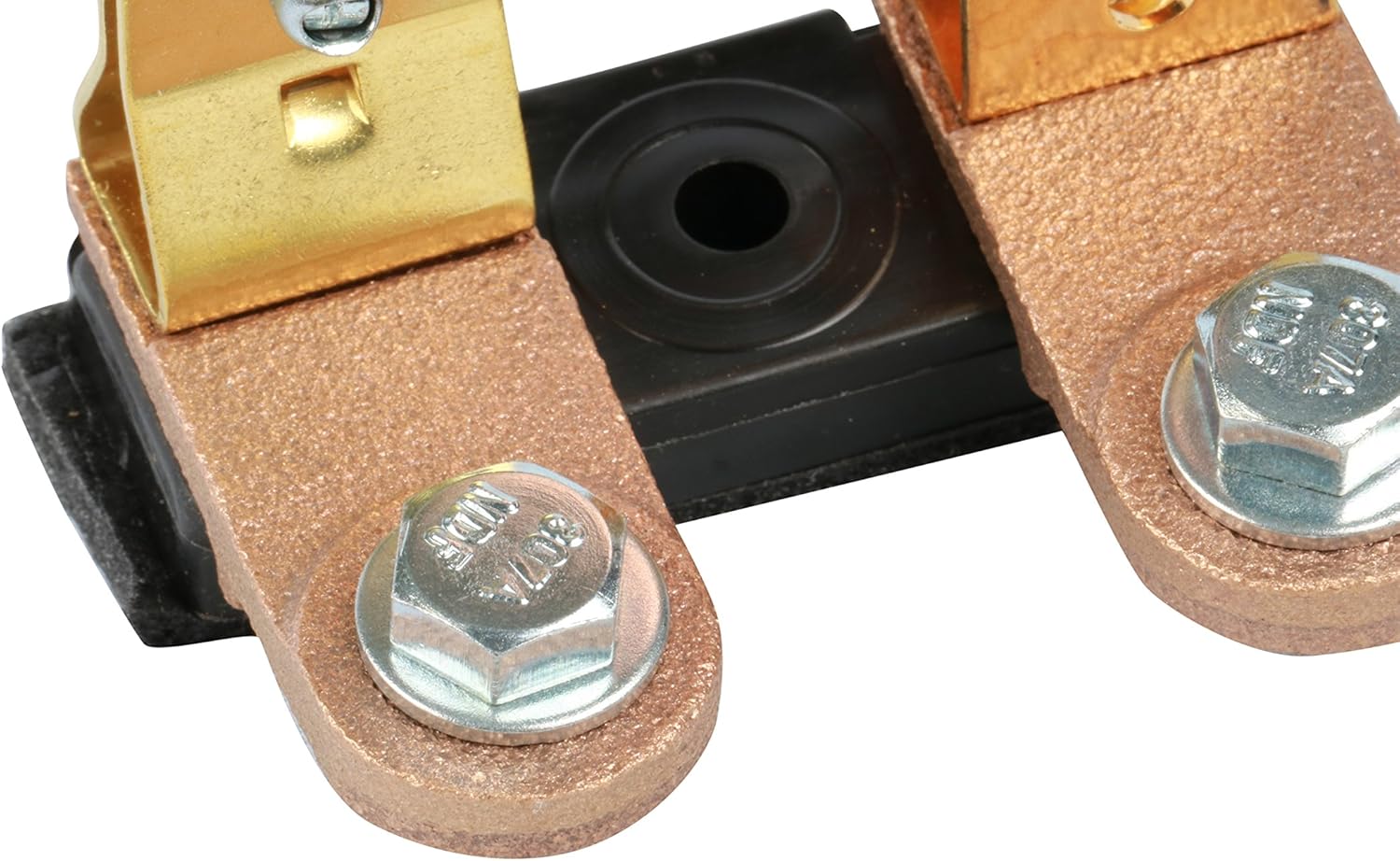

• 5/16" bolts for receiving eyelet cable connectors

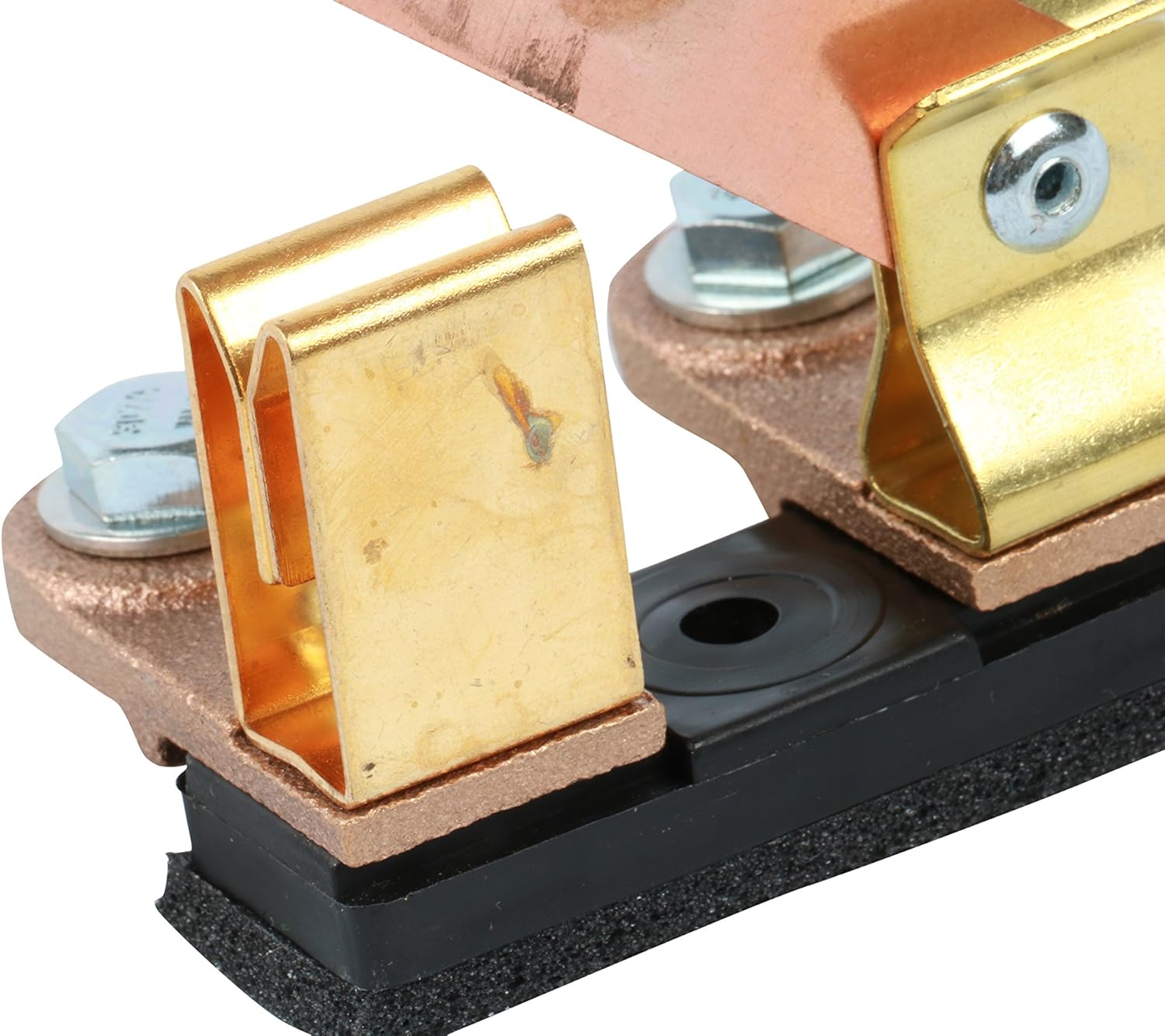

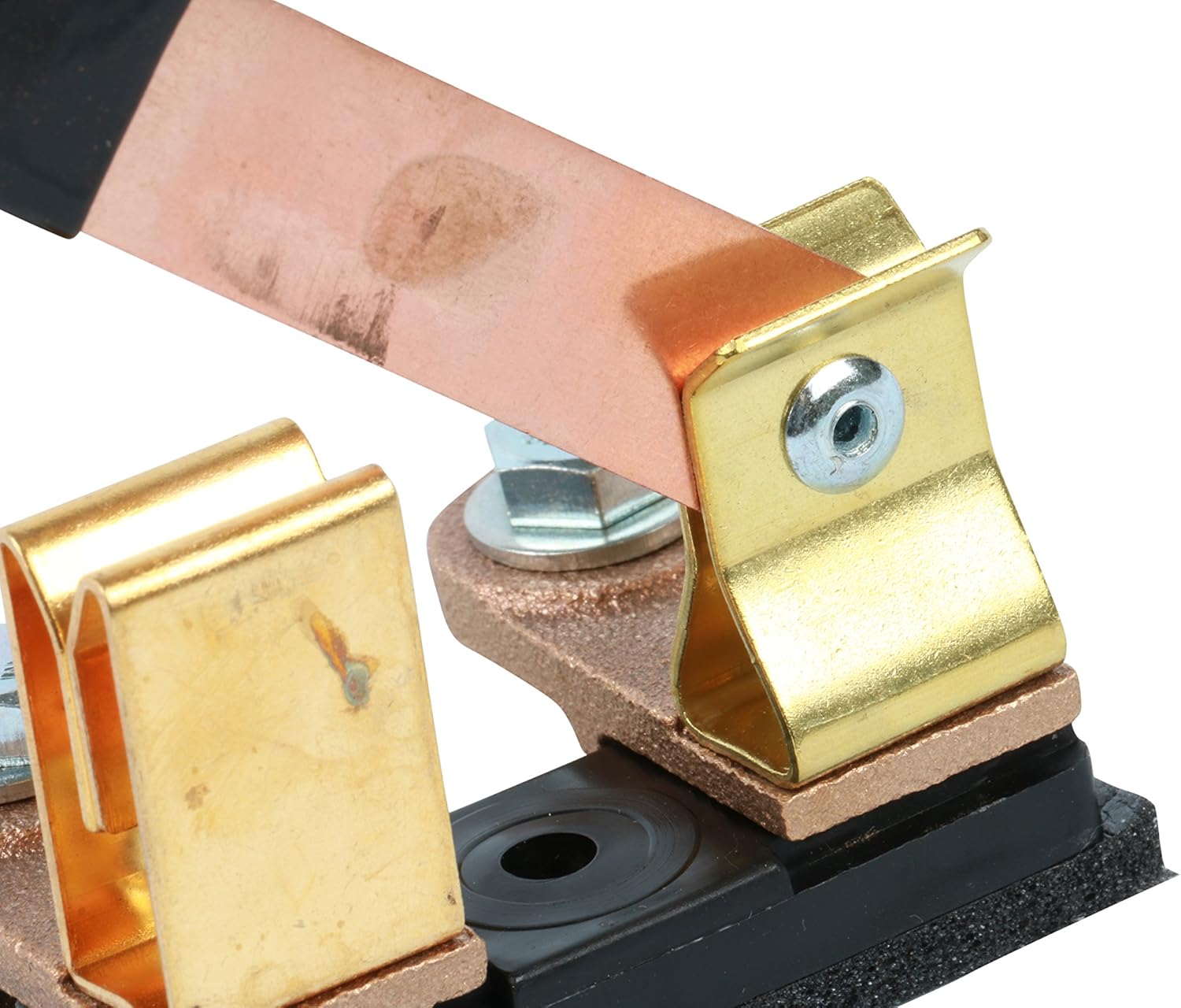

• Knife-blade switch design for quick and reliable disconnection
• Weight 0.55 lbs

Installation and Use:

Run a new cable to the switch, and connect the battery cable to the post on the switch. For permanent installation where disconnection of battery power is desired near the operator, or hidden as a theft deterrent. This switch provides an effective way to prevent parasitic battery drain during storage, eliminate unauthorized vehicle use, and extend battery life.

Ideal for cars, trucks, RVs, marine applications, and seasonal equipment where battery disconnection is needed without the hassle of removing cables from the battery terminals.
