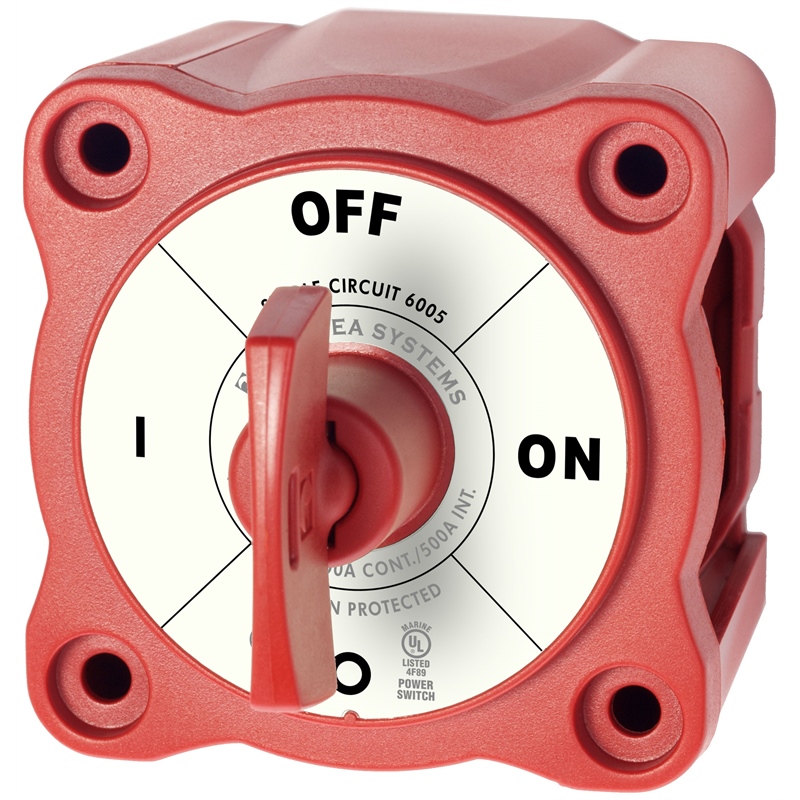

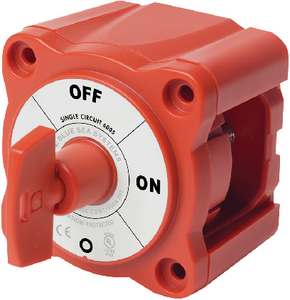

A compact battery switch that switches a single battery to a single load group and offers multiple installation options
Blue Sea Systems m-Series battery switches are compact and waterproof and can be installed almost anywhere. The small footprint and three mounting options make installation easy. M-Series switches are ignition protected and can be located in the engine rooms of gasoline powered boats. A removable key adds a level of security and will prevent accidental power flow while servicing the electrical system. One piece tin-plated copper terminal studs are long enough to accept multiple cables and will handle the torque required to create a secure connection that minimizes resistance. For a small, versatile battery switch that is easy to install and use, look no further than the m-Series from Blue Sea Systems.
Key Features
- Compact design makes installation in tight places easy

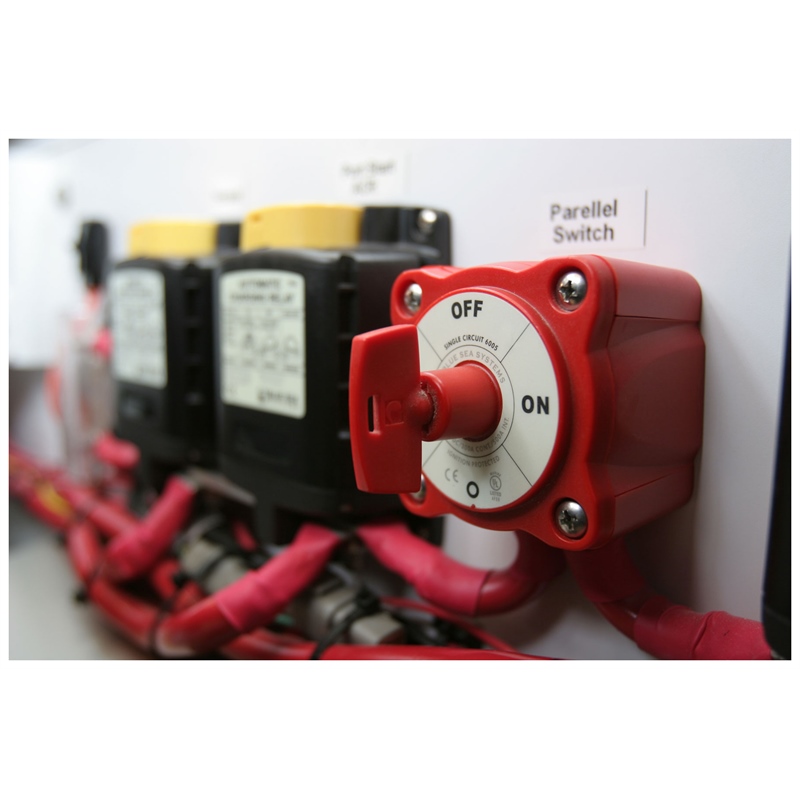

- Multiple mounting options; can be installed on the surface, rear, or front of the panel
- Battery On-Off switch with removable key provides added safety to prevent accidental or unwanted current in the DC system; this is handy during electrical system repairs
- Ignition protected and can be mounted in the engine room of gasoline powered boats

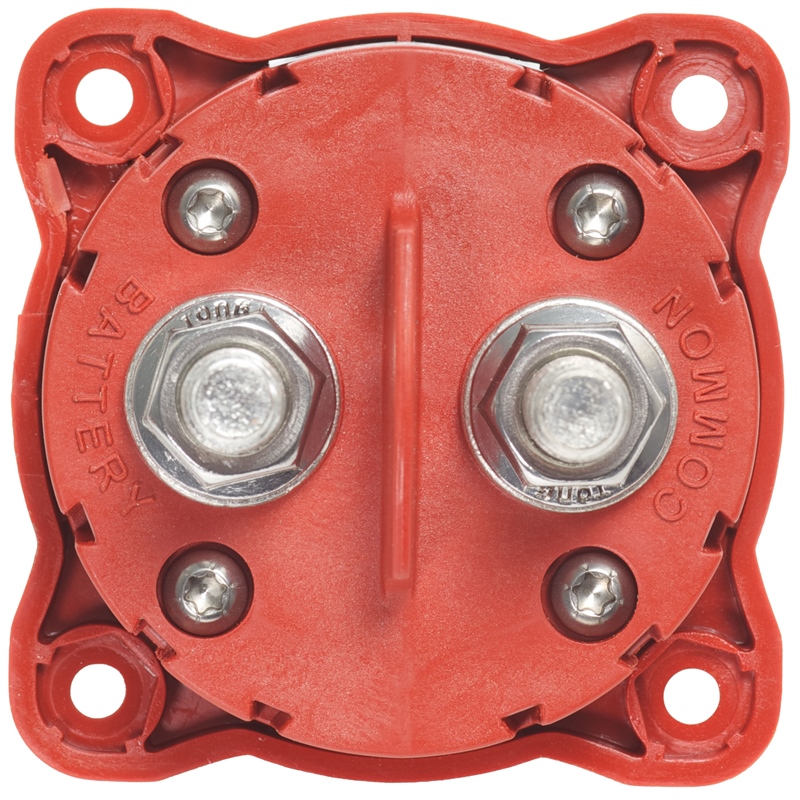

- One piece tin-plated copper studs are 7/8”long and accept multiple cables
- Knock out isolator covers and labels included
- Waterproof; rated IP66
- Lifetime warranty
Specifications
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 48V
- Continuous Rating: 300A
- Intermittent Rating (duration): 500A (5min)
- Cranking Rating (30Sec): 900A
- Battery Inputs: 1
- Cable Size to meet ratings: 4/0 AWG
- Mounting Holes: #10 screws
- Terminal Stud size: 3/8"
- Dimensions: 2 7/8"L x 2 7/8"W x 3 ¾" D (overall
