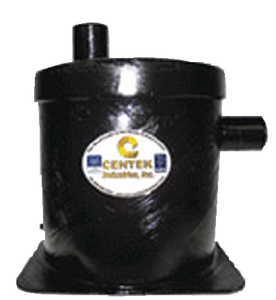

Centek 1500092 Vernalift Side In/Top Out Marine Muffler 6 Inch

The Centek 1500092 Vernalift is a high-performance wet marine exhaust muffler designed to provide superior noise reduction and reliable engine protection. This industry-leading lift muffler meets or exceeds the requirements of ABYC P-1 Standards, making it suitable for demanding marine applications.

Key Features:

• High strength design provides a significant safety margin over other existing fiberglass lift mufflers
• Manufactured using fiberglass reinforced plastics that will not corrode or deteriorate when exposed to gasoline or diesel fumes mixed with salt or fresh water
• Constructed using high temperature resins that stand up to heat and resist corrosion
• Side inlet/top outlet configuration with 6-inch inlet and outlet ports
• 6.05 gallon water capacity with Class 1 fire retardant epoxy vinyl ester thermoset resin
• 17-inch square base for stable mounting

Applications:

• Compatible with propulsion engines or generators located above or below water line
• Suitable for gas/diesel fuel type inboards, sailboats, and generator applications
• Rated for 280 HP diesel or 440 HP gas engines
• Sound rating: Better

The compact Vernalift muffler was designed for sailboat auxiliary propulsion engines installed near or below the water line, incorporating an internal design which helps force the water out of the muffler without filling it, while effectively reducing exhaust noise and preventing water from returning to the engine.

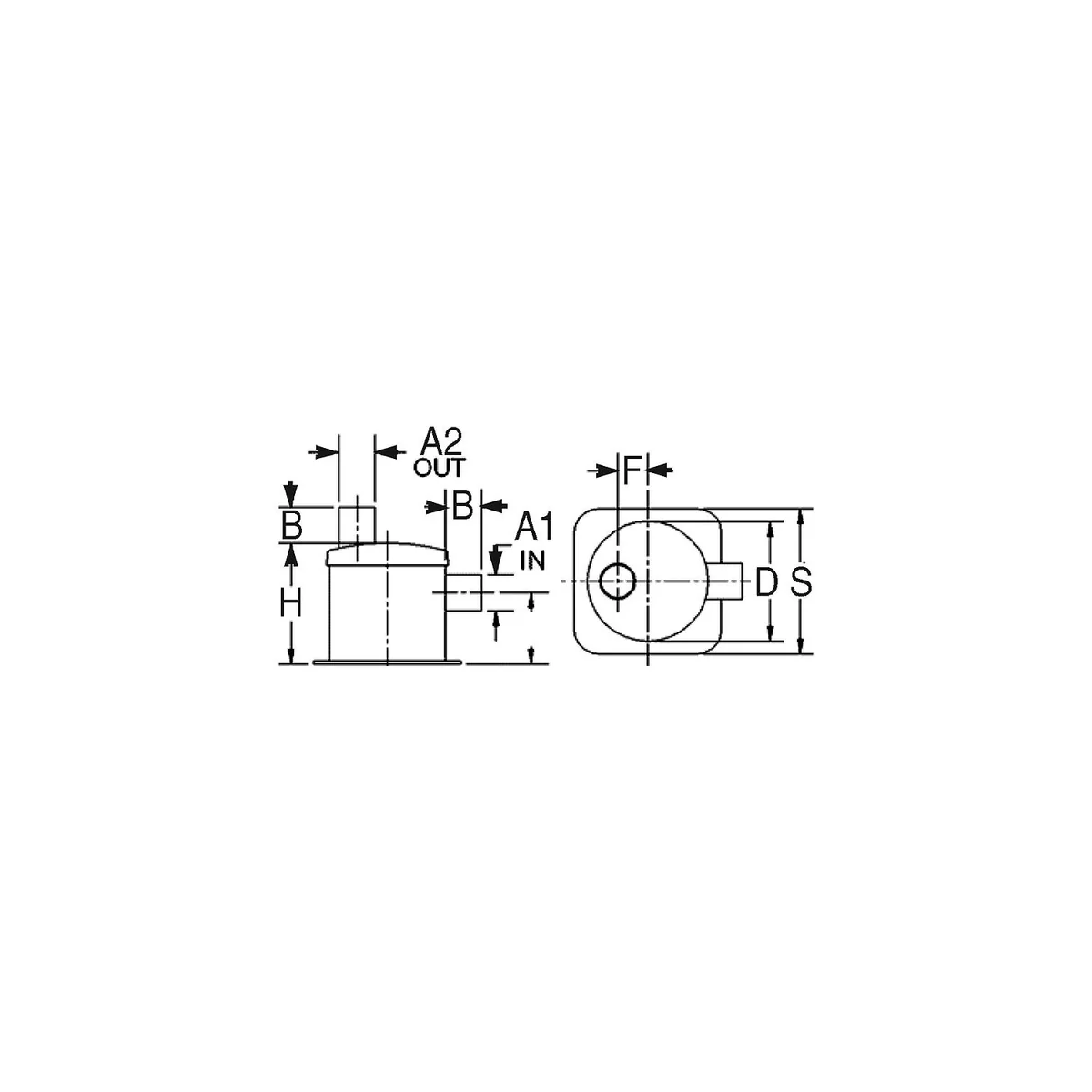

Specifications:

• Manufacturer Part Number: 1500092
• Inlet/Outlet Size: 6 inches
• Inlet Height: 8.75 inches
• Base Dimensions: 17 x 17 inches (square)
• Overall Height: 16 inches
• Capacity: 6.05 gallons
• Weight: 28 pounds
• Construction: Fiberglass reinforced plastic with fire-retardant resin
