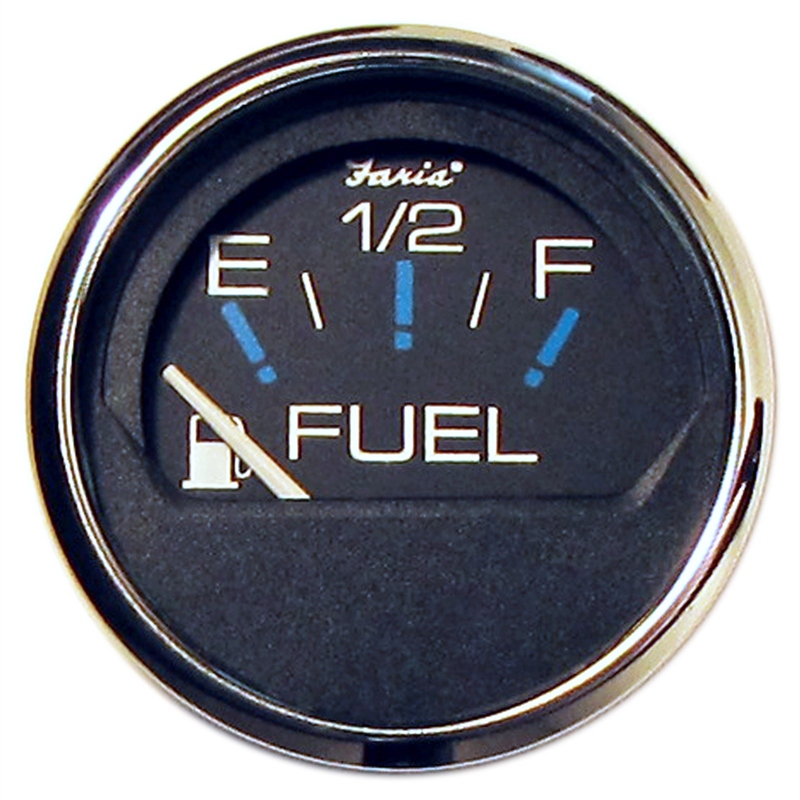

Faria Instruments 13701 Chesapeake Black SS 2" Fuel Level Gauge (E-1/2-F)

The Faria Chesapeake Black SS 2" Fuel Level Gauge delivers precision fuel monitoring with classic maritime styling. This premium marine gauge features a perimeter-lighted black dial with distinctive blue and white graphics, complemented by a polished stainless steel bezel, contoured white pointer, and anti-scratch domed glass lens for lasting clarity in harsh marine environments.

Key Features:

• Perimeter-lighted backlight for excellent nighttime visibility
• Anti-scratch glass lens resists wear and maintains clarity
• Polished stainless steel bezel withstands corrosion
• Standard 2" diameter fits most marine instrument panels (hole size: 2.0625"/53mm)
• 12 VDC negative ground operation, adaptable for 24 VDC systems
• E-1/2-F scale provides clear fuel level readings

How It Works:

This fuel level gauge operates by sending low amperage current through the meter to ground via a variable resistance sending unit. As the sender's resistance changes with fuel level, the current flow adjusts accordingly, causing the meter to deflect and accurately display remaining fuel.

Installation Notes:

Requires 2.0625" (53mm) diameter mounting hole. Compatible with standard marine fuel sending units. Gauge cover sold separately. Factory part number GP9368.
