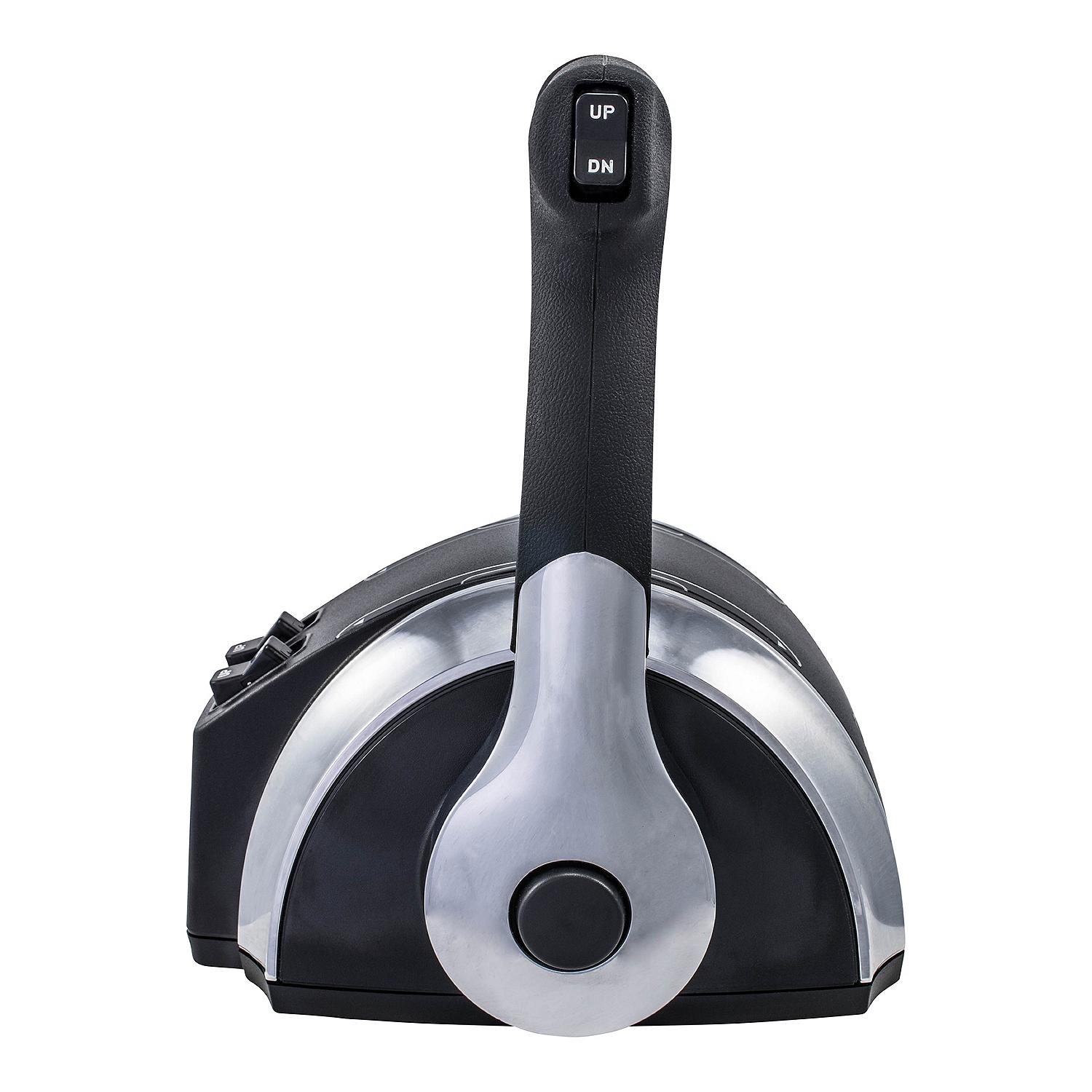

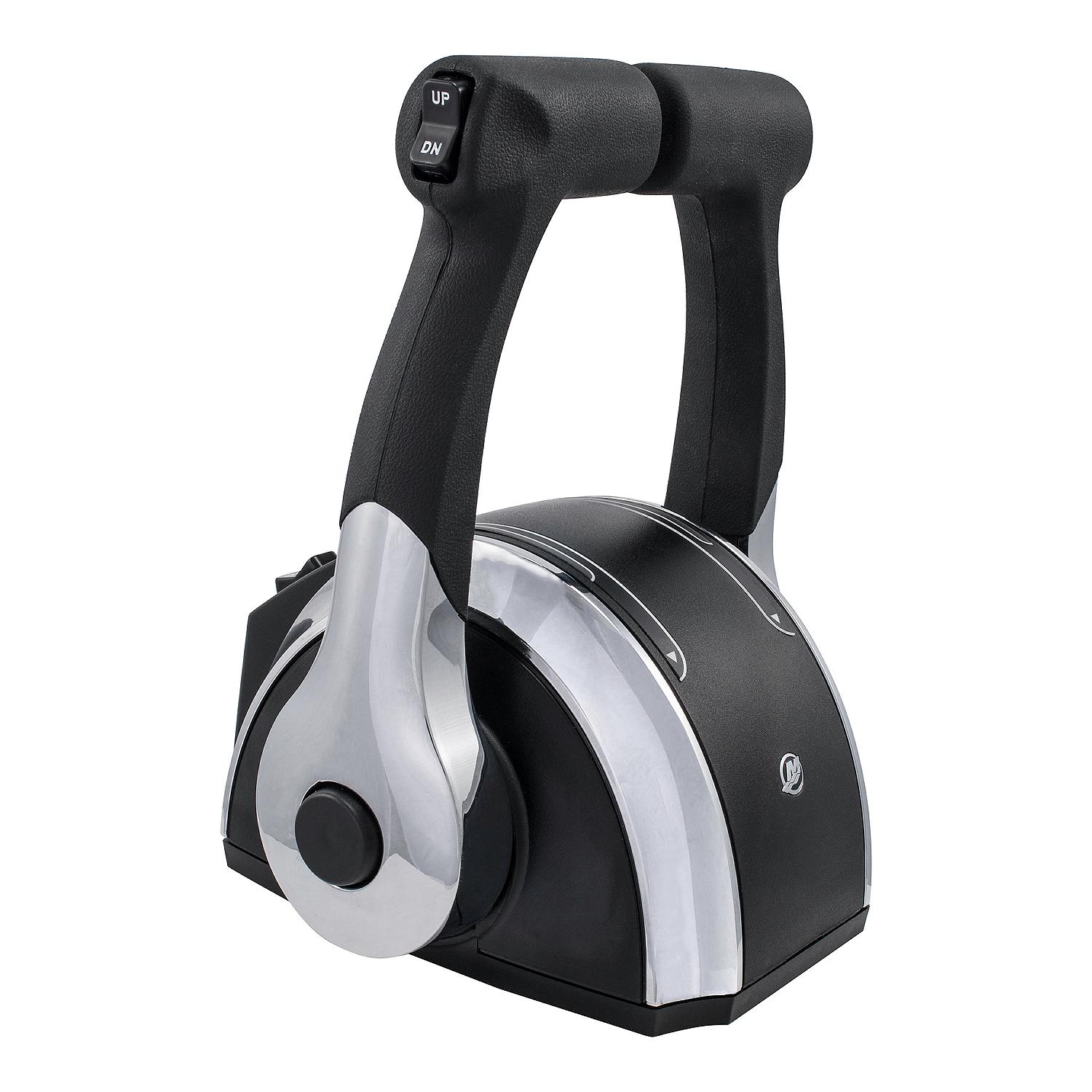

Quicksilver 8M0075245 4500 Gen II Dual Engine Binnacle Mount Remote Control with Trim

The Quicksilver 8M0075245 is an OEM 4500 Gen II dual-engine binnacle (console top mount) remote control designed for twin Mercury and Mariner outboard installations with integral power trim. It also supports twin 1993-and-newer Force outboards rated 40 HP and above that use Mercury-style cables with power trim.

A single, thumb-activated trim switch integrated into the port engine handle controls the trim and trailering functions of both engines simultaneously, while individual fine-tuning trim buttons on the face of the control housing let you adjust each engine independently. The neutral warm-up button allows hands-free engine idling in neutral, and neutral lockout buttons on both engine control handles prevent accidental gear engagement.

Key Features:

• Thumb-activated integrated trim/trailer switch in port engine handle — controls both engines simultaneously

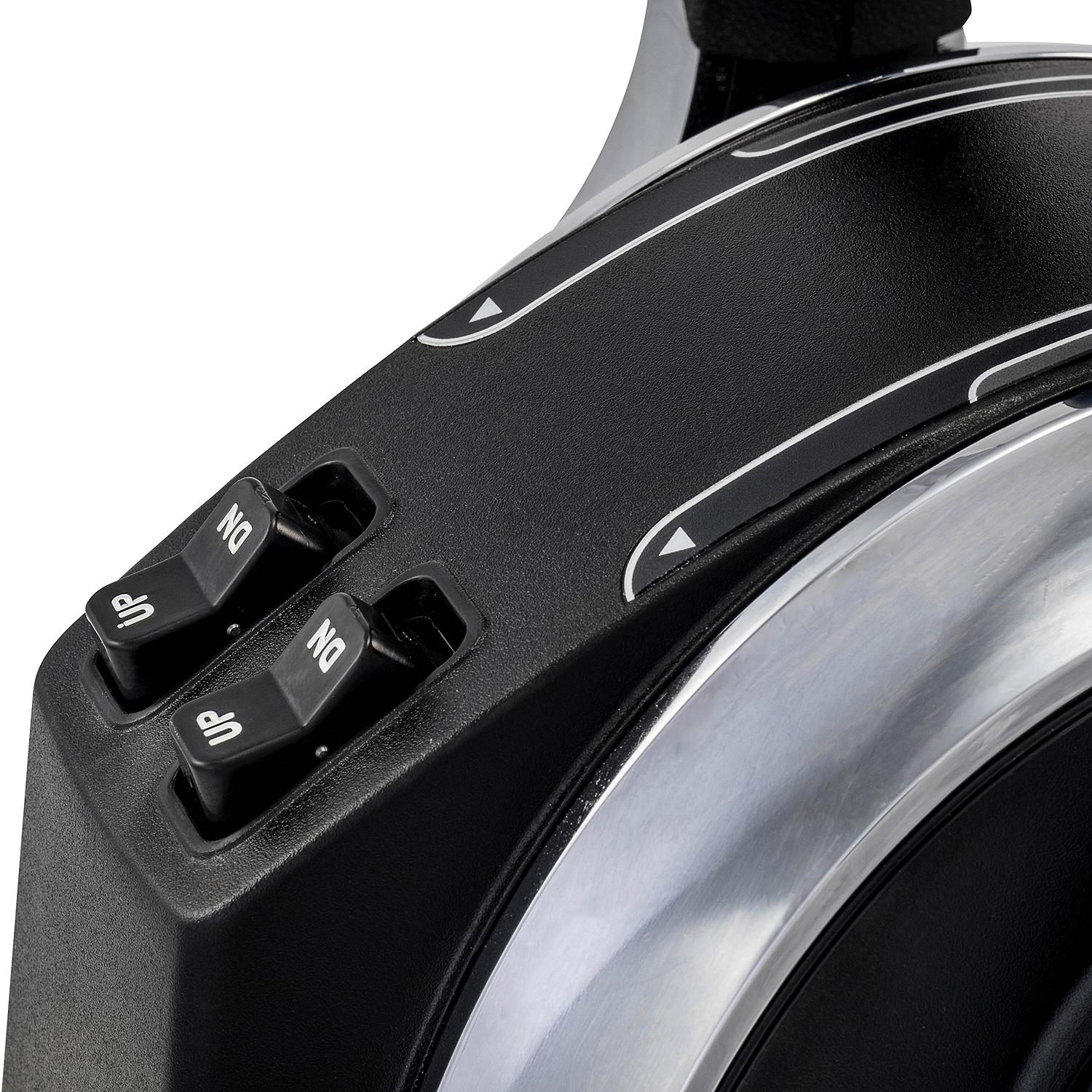

• Individual fine-tuning trim buttons on control box face for separate per-engine adjustment
• Neutral warm-up push button on each engine handle
• Neutral lockout buttons on both control handles
• Anti-glare soft black body with high-polish chrome highlights
• Weather and water spray-resistant finish for easy cleaning and long-term durability
• Low-corrosion cover and handle construction
• Compatible with Quicksilver Gen II throttle and shift cables (Mercury p/n 897978A series)
• Also compatible with Teleflex CC189 / CCX189 cables
• Includes 2 ft. (0.60 m) trim harness with standard 3-blade Mercury connector
• Built to Mercury Marine OEM specifications
• 1-year Mercury Marine factory warranty against defects in materials and workmanship

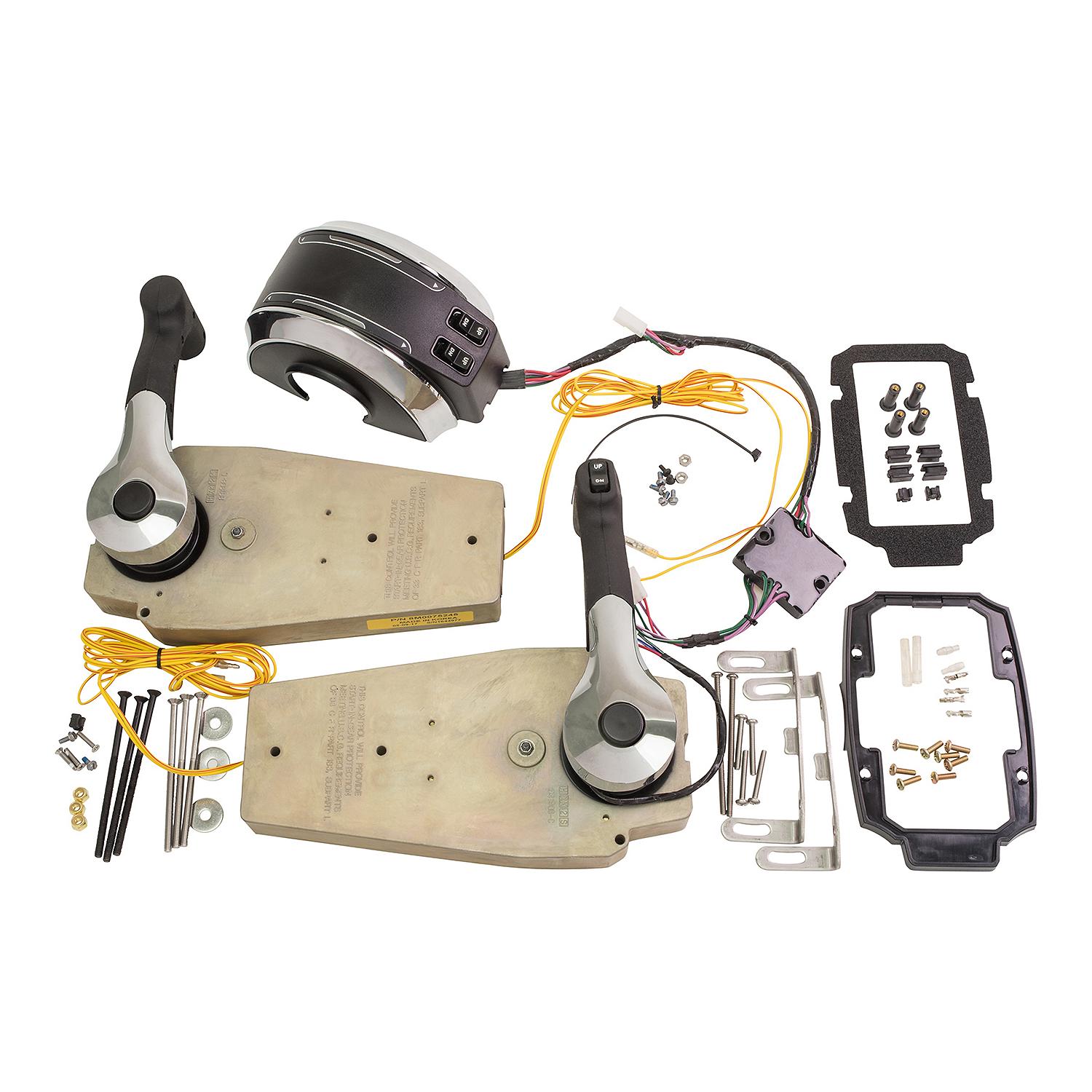

Installation Notes: A separate ignition/choke switch assembly and Gen II throttle/shift cables are required to complete installation. A separate trim control connecting harness is also required. Supersedes part numbers 883711A02 and 8M0041426.
