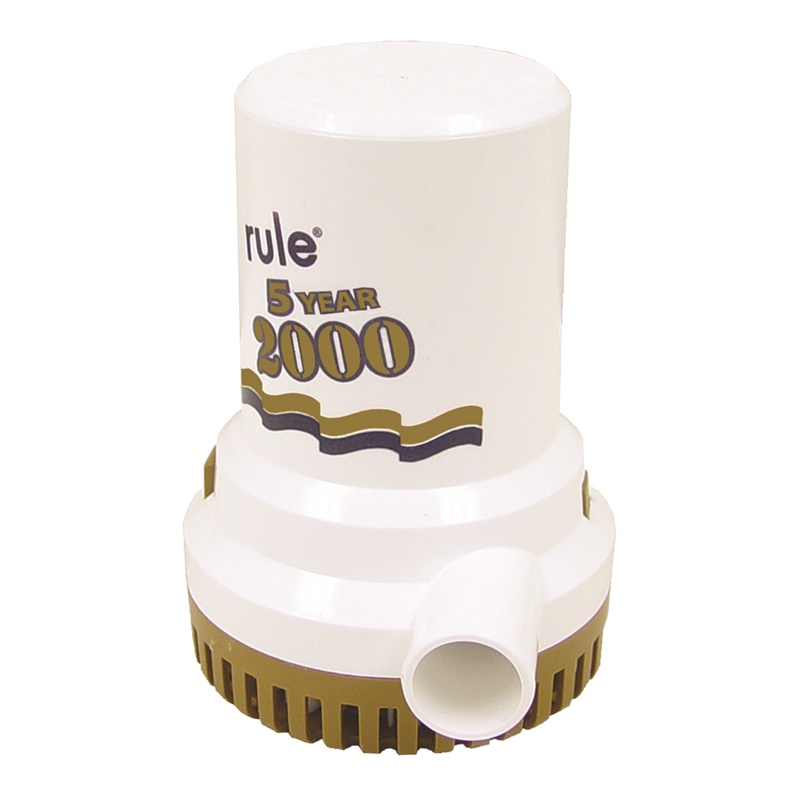

The Rule Industries 09 Gold Series is a 2,000 GPH non-automatic submersible electric bilge pump engineered to commercial standards for mid-sized yachts, motor cruisers, and recreational vessels. Rated at up to 2,000 gallons per hour (120 litres per minute) at open flow, this 12-volt pump delivers maximum bilge-clearing capacity in a compact, durable package — and backs it with an industry-leading 5-year limited warranty.
Built around a heavy-duty Rule-manufactured motor with a 5/16" stainless steel shaft, water-cooled design, and an extra-strong nylon/fiberglass centrifugal impeller, the Model 09 operates silently and vibration-free. The impeller is fully capable of running dry without motor burnout, providing critical protection during low-water conditions. Heat-resistant acetal resin housing and exclusive Rule moisture-tight seals ensure long-term corrosion and rust resistance in the harshest marine environments.
Installation is straightforward with a 6-foot marine-grade sealed wiring harness, positioning butt connectors safely above the waterline. The 1-1/8" (28mm) hose barb discharge outlet connects to standard bilge hose, and the easy-clean triple-stage snap-lock strainer base allows tool-less removal of the pump body for quick maintenance. A manual panel switch or float switch (sold separately) is required for operation.
Key Features:
- 2,000 GPH (120 L/min) open-flow capacity
- 12V DC operation — 8.4A max current draw, 15A fuse recommended
- Heavy-duty 5/16" stainless steel motor shaft
- Extra-strong nylon/fiberglass vibration-free centrifugal impeller
- Runs dry without motor burnout — anti-airlock protection
- Heat-resistant acetal resin housing
- Easy-clean triple-stage snap-lock strainer system
- Exclusive Rule moisture-tight motor seals
- 6-foot marine-grade sealed wiring harness
- 1-1/8" (28mm) hose barb discharge outlet
- Ignition protected — safe for gasoline engine compartments
- CE and ISO 8849 certified
- Rust and corrosion resistant construction
- 5-year limited warranty (Gold Series)
Suitable for both commercial and recreational vessels, the Rule 09 Gold Series is a non-automatic pump requiring a panel switch for manual operation or a compatible float switch for automatic bilge management.
