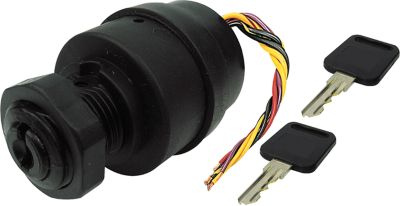

Seachoice 11831 3-Position Magneto Ignition Switch with Push-to-Choke

The Seachoice 11831 is a heavy-duty 6-wire magneto ignition switch designed for marine engines and small craft applications. This versatile switch features three positions—Off, Ignition, and Start—with an integrated push-to-choke function for easy cold starting.

Key Features:

• 3-position operation: Off, Ignition, and Start
• Push-to-choke function for simplified cold starting
• 6-wire configuration for magneto ignition systems
• 13/16" stem width for standard panel mounting
• Includes two keys for security
• Ignition circuit rated at 15 Amps @ 12V
• Solenoid circuit rated at 30 Amps @ 12V
• Choke circuit rated at 7 Amps @ 12V

Wiring Configuration:

• Red wire: 12V positive power supply
• Purple wire: Ignition circuit
• Black/Magenta wire: Ground connection
• Black/Yellow wire: Magneto circuit
• Yellow/Black wire: Choke circuit

This ignition switch is ideal for replacing worn or damaged switches on outboard motors, small inboard engines, and other marine applications requiring magneto ignition control. The compact design and standard mounting dimensions ensure compatibility with most marine control panels.
