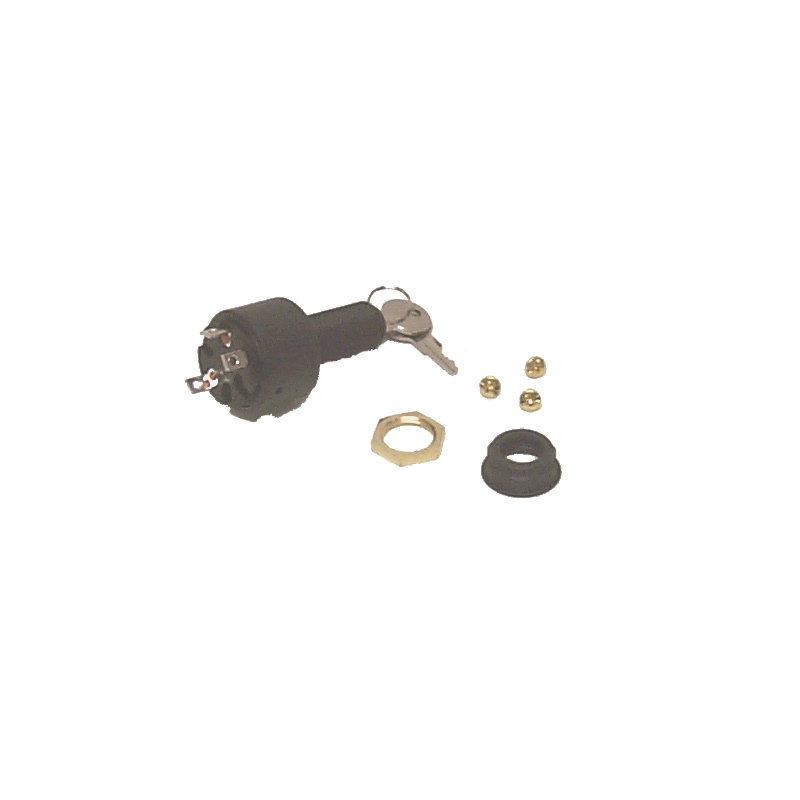

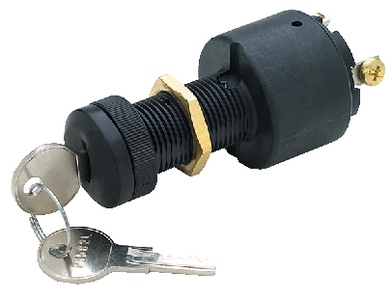

Exact OEM replacement ignition switch for Seadog part number 420360-1.
Sierra's 3-Position Ignition Switch fits a standard 7/8"dia. hole and features a marine-grade, glass-filled polyester housing for corrosion protection. Nickel-silver screw terminals ensure long-lasting conductivity. This three-position conventional switch provides Off-Run-Start with three screw tabs. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position conventional switch
- Exact OEM replacement for Seadog 420360-1
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 3 screw tab
- Back Up Nut: Brass
- Face Nut: Hex black plastic
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
