This three-position conventional switch is impact- and corrosion-resistant.

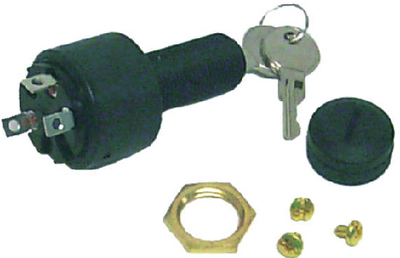

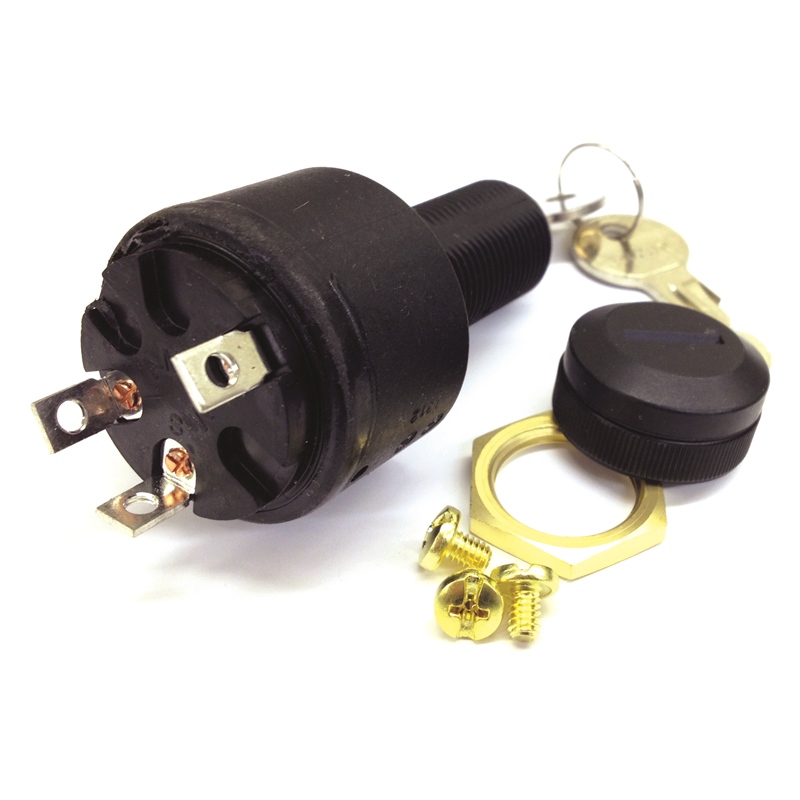

Sierra's 3-Position Ignition Switch fits a standard 7/8"dia. hole and includes a snap-on rubber cap for additional protection from mist or spray. Nickel-silver screw terminals ensure long-lasting conductivity. This three-position conventional switch provides Off-Run-Start with three terminals. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position conventional switch
- Interchangeable with Cole-Hersee M850BP and Seadog 420365-1
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 3 screw tab
- Back Up Nut: Brass
- Face Nut: Knurled black plastic with snap-on rubber cap
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
