Impact- and corrosion-resistant switch provides Off-Run-Start and push-to-choke.

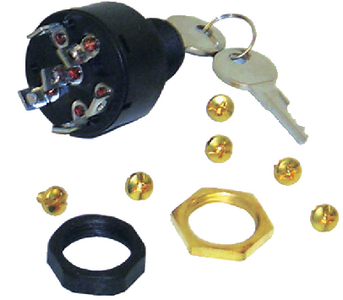

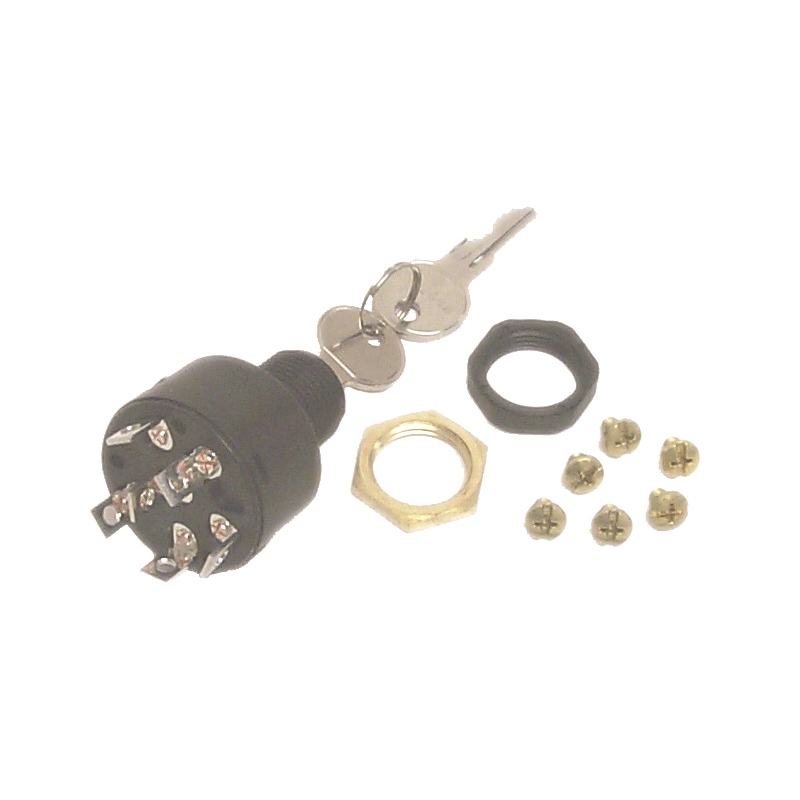

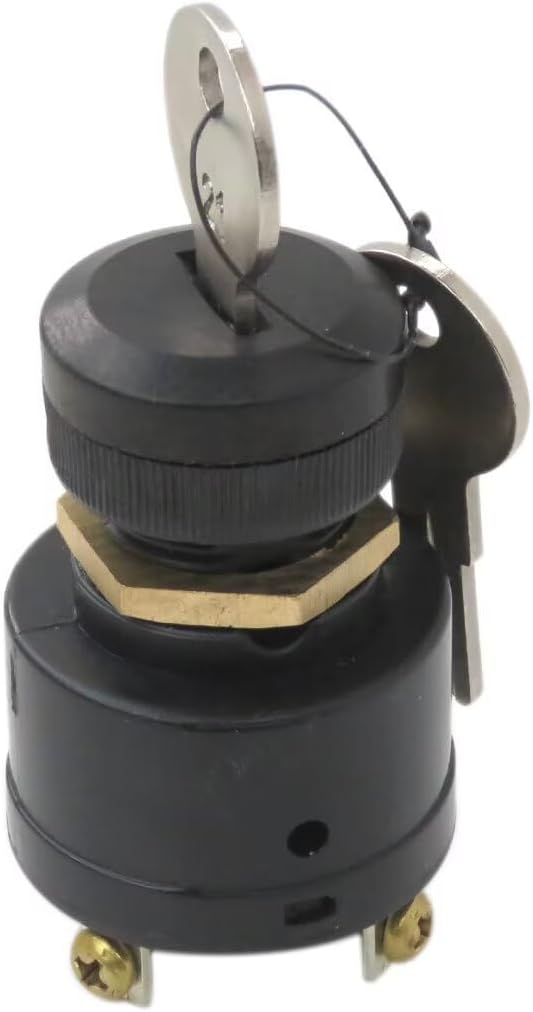

Sierra's Polyester Marine Ignition Switch fits a standard 7/8"dia. hole and offers impact and corrosion protection. Nickel-silver screw terminals ensure long-lasting conductivity. This three-position magneto switch provides Off-Run-Start with push-to-choke (6 terminals). Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position magneto switch
- Convenient push-to-choke
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Short, 5/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 6 screw tab
- Back Up Nut: Brass
- Face Nut: Hex black plastic
- Choke: Push-to-choke
- Positions: Off-Run-Start
Rated
Ignition: 15A @ 12V DC
Solenoid: 30A @ 12V DC
Choke: 7A @ 12V DC
The Sierra Engine Parts Selector
In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our , where you can search by engine make, serial number and model or year of manufacture.
| Application | OEM Part Number |
|---|
| Mercury Marine | 87-88107, 87-88107A5, 87-17393 |
| Mercury Sport Jet | 87-88107, 87-88107A5 |
| Seadog | 420381-1 |
