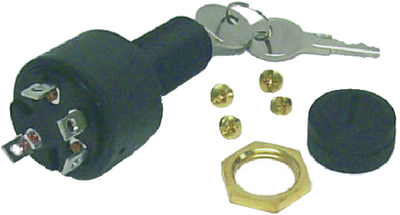

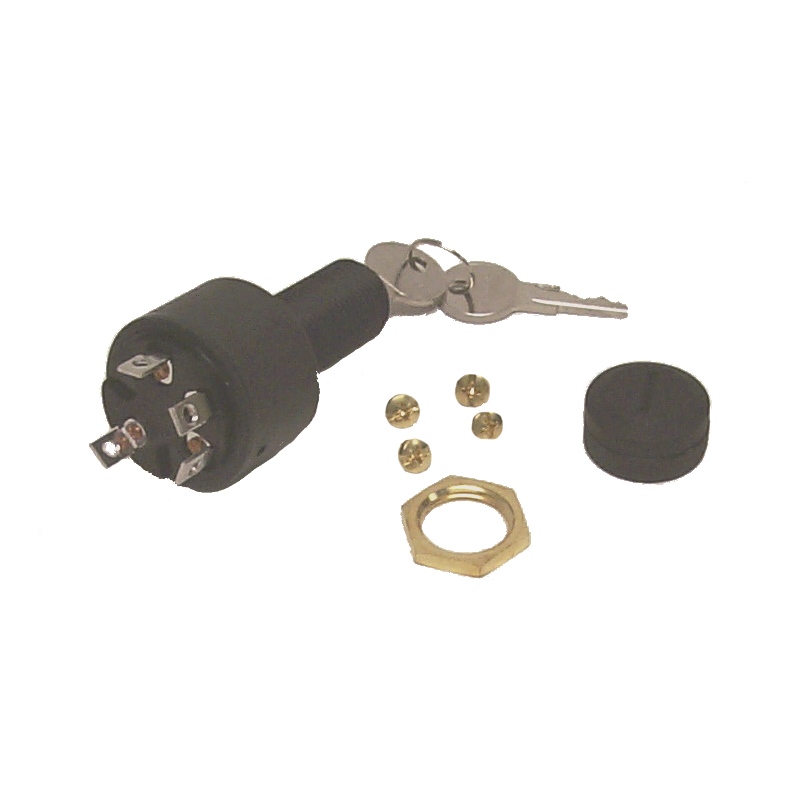

Exact OEM replacement ignition switch for Seadog part number 420375-1.
Sierra's Polyester Ignition Switch fits a standard 7/8"dia. hole and features a four-position conventional switch that provides Accessory-Off-Run-Start. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Four-position conventional switch
- Exact OEM replacement for Seadog 420375-1
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 4 screw tab
- Back Up Nut: Brass
- Face Nut: Knurled black plastic with snap-on rubber cap
- Positions: Accessory-Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Accessory: 15A @ 12V DC
The Sierra Engine Parts Selector
In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our , where you can search by engine make, serial number and model or year of manufacture.
