This 4-Position Conventional Switch is made of die cast zinc for excellent corrosion protection.

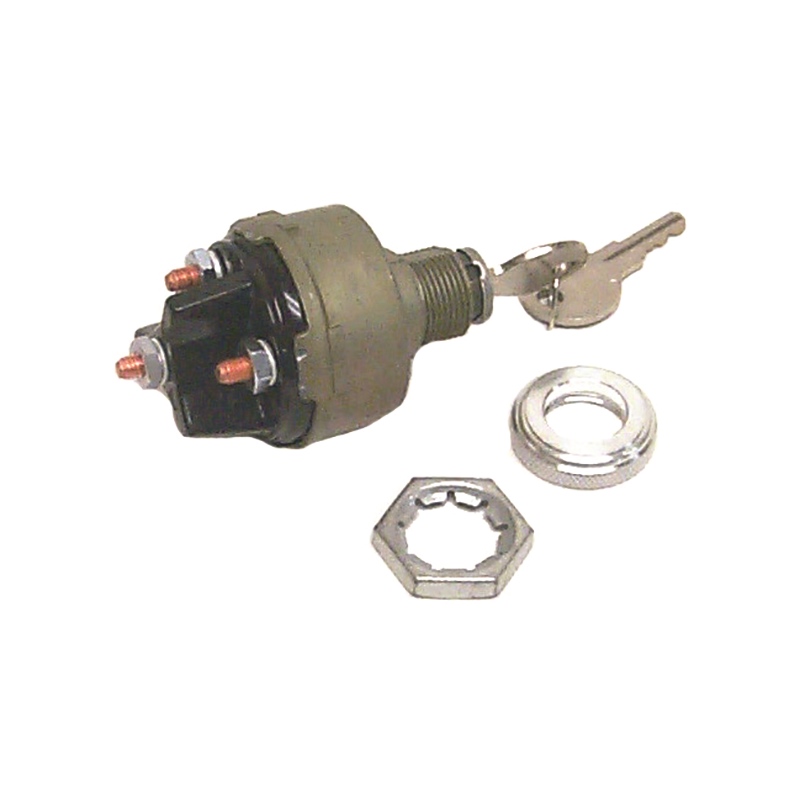

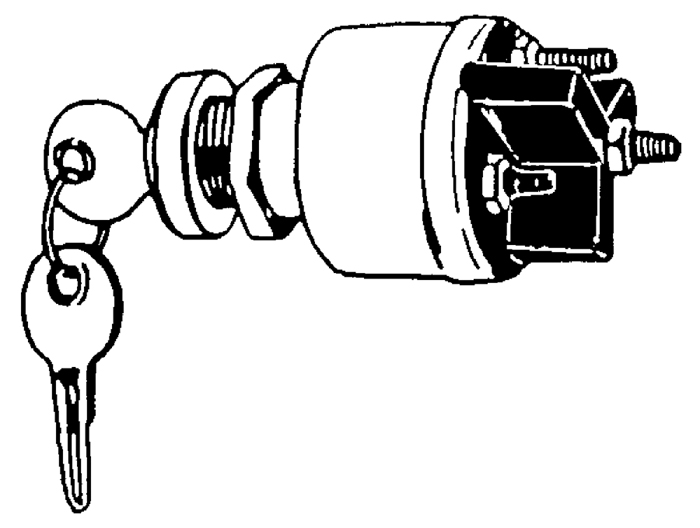

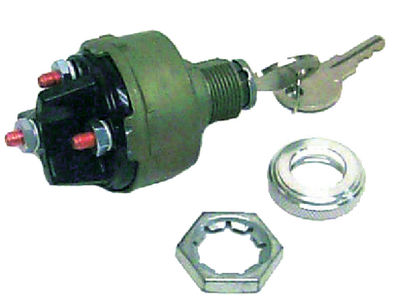

Sierra's die cast zinc Ignition Switch installs in a 9/16"dia. hole and features a four-position conventional switch that provides Accessory-Off-Run-Start. Includes two keys and different key codes for added security.
Key Features
- Corrosion-resistant construction
- Four-position conventional switch
Specifications
- Material: Die cast zinc
- Length: Short, 5/8" maximum panel thickness
- Hole Size: 9/16"
- Terminal Type: 4 threaded studs
- Back Up Nut: Die cast zinc
- Face Nut: Knurled chrome
- Positions: Accessory-Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Accessory: 15A @ 12V DC
The Sierra Engine Parts Selector
In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our , where you can search by engine make, serial number and model or year of manufacture.
