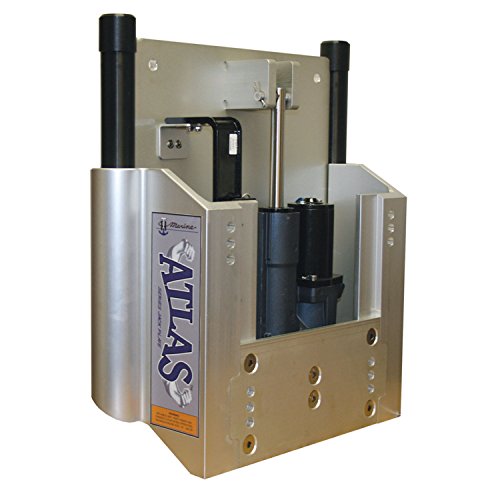

T-H Marine AHJ10VDP Atlas 10 Inch Setback Hydraulic Jack Plate

Manufacturer

T-H Marine

<h3>About T-H Marine</h3><p>Since 1975, T-H Marine has been one of the most respected names in the recreational boating industry. <strong>Founded in Huntsville, Alabama</strong>, this family-owned company was built by boaters and anglers who understood firsthand what the water demands. That passion for the sport drives every product they design — from the transom to the helm — and it shows in the breadth and quality of their lineup.</p><p>T-H Marine's legacy is one of genuine innovation. The company revolutionized recreational boating with the first-to-market, full production jack plate — a product category they essentially created. Their <a href="/7603-t-h-marine-jack-plates-200590">jack plates</a> remain the cornerstone of their catalog, and for good reason: T-H Marine is a leader in the hydraulic jack plate market, with its products being used by almost all OEM boatbuilders and by more pro-fishermen than all other companies combined. From the iconic <strong>HI-JACKER&trade;</strong> manual plates to the sophisticated <strong>ATLAS&reg;</strong> hydraulic series, the lineup covers outboards of virtually every horsepower class.</p><p>Performance on the water goes beyond just motor positioning. T-H Marine's <a href="/201071-tilttrim-motors-t-h-marine-7603">tilt/trim motors</a> and <a href="/7603-t-h-marine-trim-controls-201109">trim controls</a> give boaters precise command over their outboard's angle at any speed. The brand also introduced the first foot-operated trim switch — the HOT TRIM — providing a safety feature that allows boaters to keep both hands on the wheel when running at higher speeds. That same philosophy of hands-on safety extends to their steering-wheel-mounted trim control units, which put adjustment right at the driver's fingertips.</p><p>Getting a clean, functional helm setup on an aluminum or Jon boat has always been a challenge, which is where T-H Marine's <a href="/7603-t-h-marine-steering-throttle-mounts-201012">steering &amp; throttle mounts</a> make a real difference. Their steering console mounts add steering control and a cleaner helm setup, designed to be adaptable to most aluminum or fiberglass boats. Pair that with their multi-purpose gauge mounts and you have a complete, organized cockpit without a custom fabrication project.</p><p> T-H Marine produces thousands of products across many categories, including outboard motor mounts, outboard tilt and trim, access hatches, deck plates, livewell aeration, plumbing fittings, battery trays, fishing rod holders, boat lights, rigging accessories, trolling motor accessories, and pontoon boat parts. Whether you&apos;re rigging a new bass boat, upgrading an older aluminum fishing rig, or outfitting a center console for coastal fishing, T-H Marine has the hardware to get it done right.</p><h3>Why Boaters Trust T-H Marine</h3><ul style="list-style:disc"><li>Over 45 years of marine innovation and manufacturing experience</li><li>Pioneer of the outboard jack plate — a category-defining invention</li><li>Products trusted by professional tournament anglers and OEM boatbuilders alike</li><li>Extensive range covering performance, rigging, plumbing, lighting, and helm accessories</li><li>Designed by boaters, for boaters — from a team that actually spends time on the water</li></ul>

Part Number

AHJ10VDP
09/12/2036 7:04 PM
Sale Price

$1,702.31

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The T-H Marine Atlas hydraulic jack plate represents the next generation in jack plate design, built for the heaviest and most powerful outboard engines on the market today. This high-tech, high-speed, one-piece design features an innovative rod and slot lift system to handle the stresses from the heaviest and most powerful V6 outboards, with all hydraulics built into the jack, eliminating the installation of pumps and reservoirs inside the transom.

Key Features:

  • Rated for engines up to 300 HP or up to 625 pounds dry weight
  • Adjusts from 5 to 7 inches in height and elevates from bottom to top in less than 8 seconds
  • High-tech engineered polymer rods are 6 times more abrasion resistant than steel and manufactured from self-lubricating material
  • Innovative rod and slot lifting design guarantees trouble-free action
  • 10-inch setback for optimized engine positioning
  • Transom-side dimensions: 16-3/8 inches wide x 12-1/2 inches tall
  • Pre-drilled for Power-Pole and Minn Kota Talon bracket mounting
  • Includes relay harness and rocker switch; mounting hardware not included

Industry-Leading Innovation:

  • First jack plate to house an actuator within the plate itself
  • Requires no regular grease lubrication, saving time and effort
  • Includes reinforced safety cable that prevents failed engines from endangering passengers
  • Hydraulic actuator is proudly U.S.-made
  • Lifetime warranty on frame and three-year warranty on hydraulics

More boat manufacturers trust Atlas hydraulic jack plates than any other brand, and professional anglers and recreational boaters rely on their durability, even in demanding conditions. This self-contained hydraulic system simplifies installation, improves boat performance, and provides quick adjustments to adapt to changing water conditions.

Products specifications

Finish

Aluminum

Rating

Up to 300hp/625 lbs.

Setback

10"
