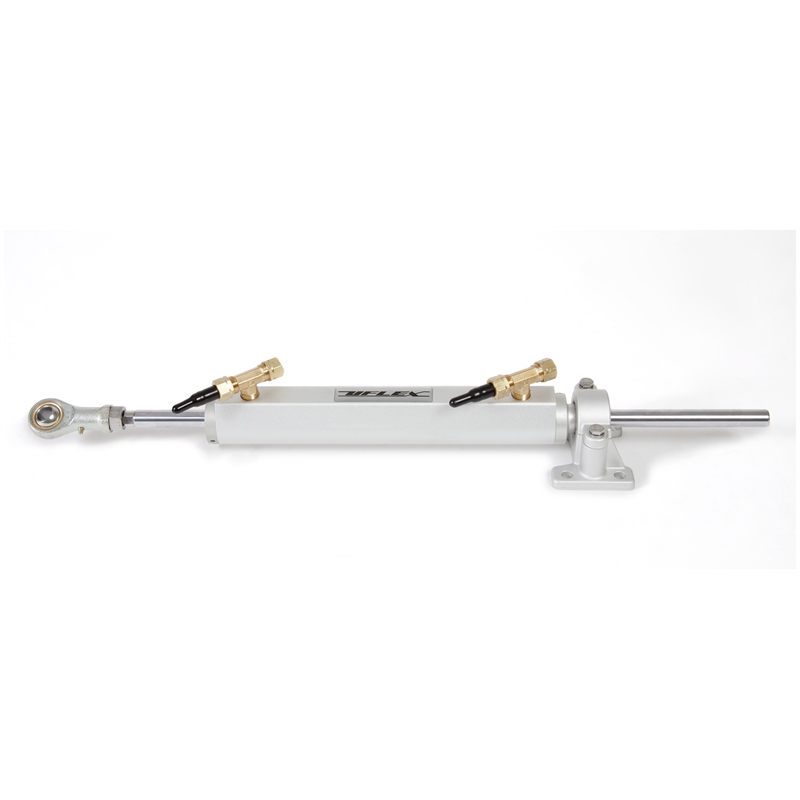

Uflex UC116-I Hydraulic Steering Cylinder 1.25" Bore x 7" Stroke for Inboard Engines

The Uflex UC116-I is a heavy-duty hydraulic steering cylinder designed for inboard marine engines, delivering smooth and fatigue-free steering performance. Built with anodized aluminum construction and a heavy-duty stainless steel rod, this cylinder is engineered to withstand the most demanding marine applications.

Key Specifications:

• Bore Size: 1.25 inches
• Stroke Length: 7 inches (178mm)
• Fluid Capacity: 116cc (7.0 cubic inches)
• Hydraulic Fittings: 3/8" nylon tube connections
• Maximum Torque: 58 kgm (approximately 420 lb-ft)
• Thrust Capacity: 464 kg (1,023 lbs)
• Overall Length: 22.4 inches (568mm)

Features and Benefits:

• Balanced design ensures equal lock-to-lock turns port to starboard for consistent steering response
• Universal articulating trunnion mounts simplify installation regardless of space constraints
• Compatible with Teleflex SeaStar hydraulic helms, hoses, and steering fluid
• Suitable for both single-station and dual-station hydraulic steering installations
• Anodized aluminum body resists corrosion in harsh marine environments
• Heavy-duty stainless steel rod provides exceptional durability and longevity

This front-mount hydraulic cylinder connects to your helm via nylon hydraulic tubing and is ideal for upgrading or replacing steering systems on inboard-powered boats. The UC116-I's robust construction and precise engineering make it a reliable choice for recreational and commercial marine applications.
