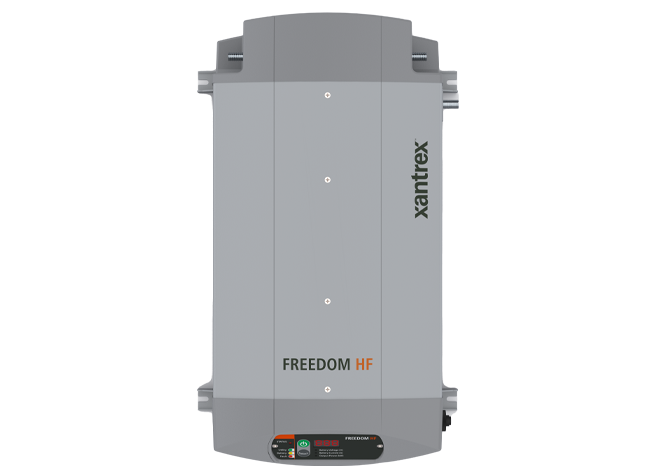

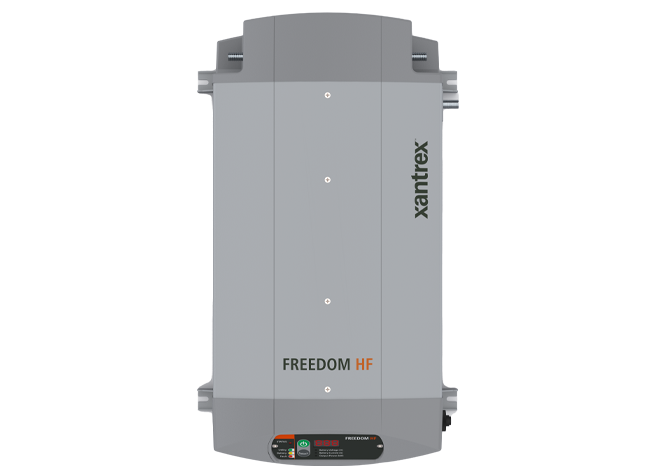

Xantrex Technologies 8061020 Freedom HF 1000 & 1800 Inverter/Charger

The Xantrex Freedom HF Inverter/Charger is a compact, all-in-one power system combining a high-output inverter, a multi-stage battery charger, and an automatic transfer switch in a single lightweight unit. Engineered for demanding marine and RV environments, the Freedom HF line is available in three configurations: 1000W with a 20A charger, 1000W with a 55A charger, and 1800W with a 40A charger — making it a versatile solution for boats, RVs, and work trucks.

With modified sine wave output, the Freedom HF is well-suited to power entertainment systems, microwave ovens, coffee makers, TVs, DVD players, and a wide range of small appliances. The 1000W model delivers a 2000W surge rating, handling the higher startup loads common in motors and appliances. The built-in 30-amp automatic transfer relay seamlessly switches between shore/utility power and battery inverter power — no manual switching required.

Key Features:

• Modified sine wave output — powers entertainment systems, small appliances, and other common electronics
• Three-stage automatic battery charger — temperature-controlled multistage charging for Flooded, AGM, and Gel cell batteries
• Built-in 30A automatic transfer switch — automatically transitions between shore power and inverter power
• Quick-connect AC terminal block on both AC input and output for easy wiring and fast installation, eliminating the need for strain relief clamps
• Detachable digital remote panel — includes a 3-color status LED and 3-digit LED display for system monitoring; mounts wherever needed
• Ignition lockout feature — minimizes battery drain when the ignition is off
• Comprehensive protection — over-voltage, under-voltage, over-temperature shutdown, automatic overload protection, and short-circuit protection
• Compact and lightweight design — ideal for factory installation in RVs, marine vessels, and commercial trucks

The Freedom HF meets UL458 with marine supplement, CSA, and FCC Class B certifications, ensuring it complies with safety and electromagnetic compatibility standards for both marine and recreational vehicle applications. A popular choice for replacing older factory-installed converters, the Freedom HF delivers reliable, professional-grade power in a space-saving package.
