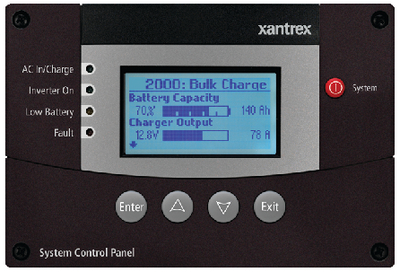

Xantrex Technologies 809-0921 Xanbus System Control Panel for Freedom SW Inverter Chargers

The Xantrex Technologies 809-0921 Xanbus System Control Panel provides comprehensive control and monitoring for Freedom SW inverter/chargers and other Xanbus-enabled devices in your RV, marine, or off-grid power system. Specifically designed to operate with the new generation Freedom SW 2012 and 3012 inverter/chargers, this advanced control panel centralizes all system management functions in one easy-to-use interface.

Key Features:

• Graphical 128 x 64 pixel backlit LCD screen displays system configuration and diagnostic information clearly
• Large keypad buttons and intuitive onscreen menu system make configuration and operation simple
• Provides basic controls for other devices connected to the network, eliminating the need for multiple control panels
• Xanbus Enabled for easy connection using standard network cables
• Built-in flash memory allows software upgrades for new features and system enhancements
• Meets UL 458 listing standards for safety and reliability

Monitoring Capabilities:

• Battery voltage, current and temperature
• AC voltage, current and frequency
• Inverter/charger status and diagnostic information
• Generator status when connected to compatible automatic generator start systems

Configuration Options:

• Battery type, bank size and inverter/charger settings
• Generator start and stop triggers
• Power sharing and load sensing parameters
• Power Management System (Freedom Sequence) settings

Compatibility: This model is designed for Freedom SW 2012 (815-2012), Freedom SW 3012 (815-3012), and the 24V models 815-2024 and 815-3024. Note that different SCP models use different firmware and are not interchangeable, so verify your inverter/charger model before ordering.

Installation Note: Connection cables are sold separately - 25 ft. cable (P/N 809-0940) or 75 ft. cable (P/N 809-0942).
