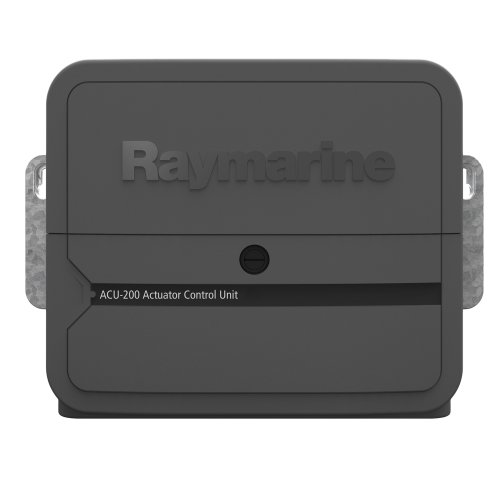

Raymarine E70099 ACU-200 Actuator Control Unit for Evolution Autopilot

The Raymarine ACU-200 Actuator Control Unit (E70099) is a rugged autopilot control unit designed for small to mid-sized vessels with mechanical or hydraulic steering systems. This essential component of the Evolution Series autopilot delivers reliable drive power to your steering actuator while also providing power distribution to the SeaTalk^ng network backbone.

Key Features:

• 15 Amp continuous drive current output at supply voltage for dependable steering control
• Universal voltage operation: 12V or 24V DC (operating range 10.8V to 31.2V DC)
• SeaTalk^ng connectivity with 3 Amp power output for network devices
• Includes M81105 rotary rudder reference for optional rudder feedback
• Drive clutch output up to 2.0A continuous, selectable between 12V/24V
• Low standby power consumption: 300 mA on main supply, 20 mA on SeaTalk^ng
• Drip-resistant design suitable for marine environments

Technical Specifications:

• Dimensions: 11.2" x 8.3" x 2.5" (285mm x 211.5mm x 64.5mm)
• Weight: 4.84 lbs (2.2 kg)
• Operating temperature: -4°F to +131°F (-20°C to +55°C)
• Maximum relative humidity: 93%
• SeaTalk^ng LEN: 1

Connections Include:

• Sleep switch connection
• Power supply connection
• Drive motor output
• Drive clutch output
• Ground connection
• SeaTalk^ng data connections (fuse protected at 3A)

This ACU-200 provides the foundation for a complete Evolution autopilot system, offering precise steering control and network integration for modern marine electronics. Compliant with European (2004/108/EC) and Australian/New Zealand (C-Tick Level 2) standards.
