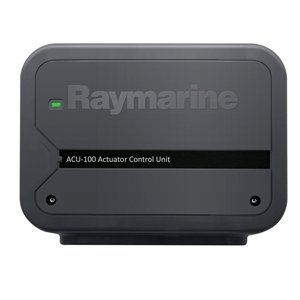

With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts.
Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor. The ACU-100 is fully sealed so may be mounted above deck on boats where space is limited.
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor. The ACU-100 is fully sealed so may be mounted above deck on boats where space is limited.
Specifications
- Drive Current Output: Maximum continuous 7A at supply voltage
- Drive Clutch Output: No clutch connection
- Connections: Rudder reference sensor, Power, Drive motor, Ground
- Nominal Supply Voltage: 12V
- Operating Voltage Range: 10.8V to 15.6V DC
- Power Consumption (standby) - main power supply: 300 mA (12V)
- Power consumption (standby) - SeaTalkng power supply: No power supply to SeaTalkng
- SeaTalkng LEN (Load Equivalency Number): 1
- SeaTalkng Power Out: No power supply to SeaTalkng
- Data Connections: SeaTalkng
- Relative Humidity: max 93%
- Waterproof Rating: Connector panel: IPX2, Drive electronics: IPX6
- Dimensions: 7 1/8" x 5 1/2" x 2" (180mm x 140mm x 52mm)
- Weight: 1.32lb.
- Conformance: Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
What's in the Box
- ACU unit
- Documentation pack
- Screws (pan head type)
- SeaTalkng spur to bare wires cable 3.3' (1m)
