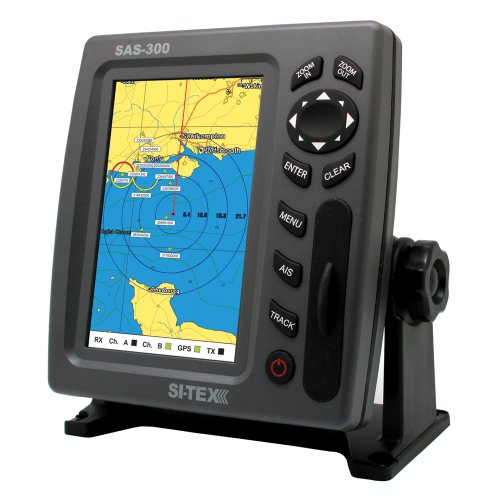

Si-Tex SAS-300-3 Class B AIS Transceiver with 6.5" LCD Display

The Si-Tex SAS-300-3 is a complete Class B AIS (Automatic Identification System) transceiver featuring an integrated 6.5-inch high-resolution TFT LCD display. This all-in-one system enables simple management, control, and display of all AIS targets within VHF range, providing critical situational awareness for marine navigation.

Key Features:

• Built-in Class B AIS transceiver with easy keypad programming
• Bright 6.5-inch high-resolution TFT LCD display
• Radar-style display with chart overlay capability
• Compatible with optional C-Map detailed cartography
• Multiple display orientations: Heads Up, North Up, and True Motion
• Tracks up to 5 vessels with 50,000-point track history
• Programmable CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach) alarms
• Customizable vessel display by selectable color and icon type
• Transmitter silence function via keypad
• Instant GOTO function for navigation

Receives and Displays:

• Class A and Class B vessel transmissions
• Base station information
• Aids to Navigation (AtoN)
• AIS SARTs (Search and Rescue Transponders)
• Search and Rescue aircraft

The system provides comprehensive vessel information including name, MMSI number, position, speed, heading, range, and bearing. The intuitive menu structure and vivid graphics make it easy to navigate between screens and access critical navigation data quickly. Vessel filtering by transmission type and customizable visual display options help reduce screen clutter and focus on the most relevant targets.

Note: The SAS-300-3 model designation indicates this is a display unit configuration. Verify transceiver functionality and included components with manufacturer specifications.
