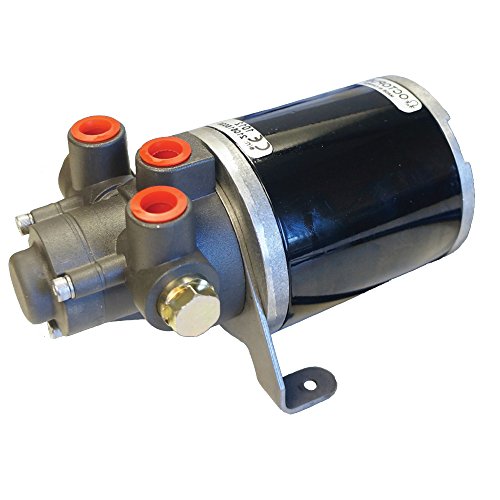

Octopus Autopilot Drives OCTAFG1612 1.6 Liter 12V Reversing Hydraulic Gear Pump

Manufacturer

Octopus Autopilot Drives

Picture for manufacturer Octopus Autopilot Drives

Part Number

OCTAFG1612
13 reviews
04/01/2036 9:25 AM
Sale Price

$635.36

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Add To Cart

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Octopus OCTAFG1612 is a high-performance 12-volt reversing hydraulic gear pump designed for marine autopilot systems with 16-24 cubic inch cylinders. Engineered by the team behind the legendary Octopus hydraulic drives, this gear pump delivers industry-leading reliability and efficiency in a compact, lightweight, and quiet package.

Key Features:

  • Industry-leading efficiency with lower power consumption, especially under demanding conditions requiring higher flow rates
  • Cost-effective design allows use with smaller autopilot course computers compared to equivalent drive units
  • Compact footprint provides increased installation flexibility in tight spaces
  • Reduced noise and vibration make it ideal for sailboat installations
  • Compatible with both balanced and unbalanced hydraulic cylinders
  • IP55 waterproof rating for marine environment protection
  • Meets ISO 8846 and SAE J1171 ignition protection standards

Technical Specifications:

  • Flow Rate: 1600cc/min (1.6 liters/min)
  • Voltage: 12 Volt DC
  • Cylinder Capacity Range: 16-24 cubic inches
  • Average Current Draw: 6.6 Amps
  • Operating Temperature Range: -15°C to +75°C (5°F to 167°F)
  • Waterproof Rating: IP55
  • Ignition Protection: ISO 8846 & SAE J1171 certified
  • EMC Compliance: EN60945-9-2002

This reversing gear pump is engineered for reliable performance in demanding marine conditions, providing precise hydraulic control for autopilot steering systems on powerboats and sailboats.
