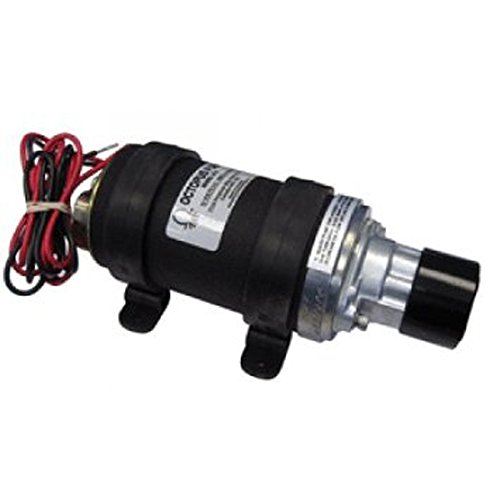

Octopus Autopilot Drives OCTAFG1012 1 Liter 12V Reversing Hydraulic Gear Pump

The Octopus OCTAFG1012 is a compact 12-volt reversing hydraulic gear pump designed specifically for marine autopilot systems with 10-15 cubic inch cylinders. Engineered by the team behind the legendary Octopus hydraulic drives, this gear pump delivers industry-leading reliability and performance in a smaller, lighter, and quieter package than previous generations.

Key Features:

• Industry-leading efficiency with lower power consumption, especially under demanding conditions requiring higher flow rates
• Compatible with smaller autopilot course computers due to increased efficiency and performance
• Compact footprint provides greater installation flexibility in tight spaces
• Reduced noise and vibration make it ideal for sailboat installations
• Works with both balanced and unbalanced hydraulic cylinders
• IP55 waterproof rating for marine environment protection

Technical Specifications:

• Flow Rate: 1000cc/min (1 liter/min)
• Voltage: 12 Volt DC
• Cylinder Range: 10-15 cubic inch cylinders
• Average Current Draw: 5 Amps
• Operating Temperature: -15°C to +75°C (5°F to 167°F)
• Waterproof Rating: IP55
• Ignition Protection: ISO 8846 & SAE J1171 compliant
• EMC Compliance: EN60945-9-2002

This reversing gear pump provides the precision and reliability required for marine autopilot steering systems while consuming less power than competing units, making it an excellent choice for both power and sailboat applications.
