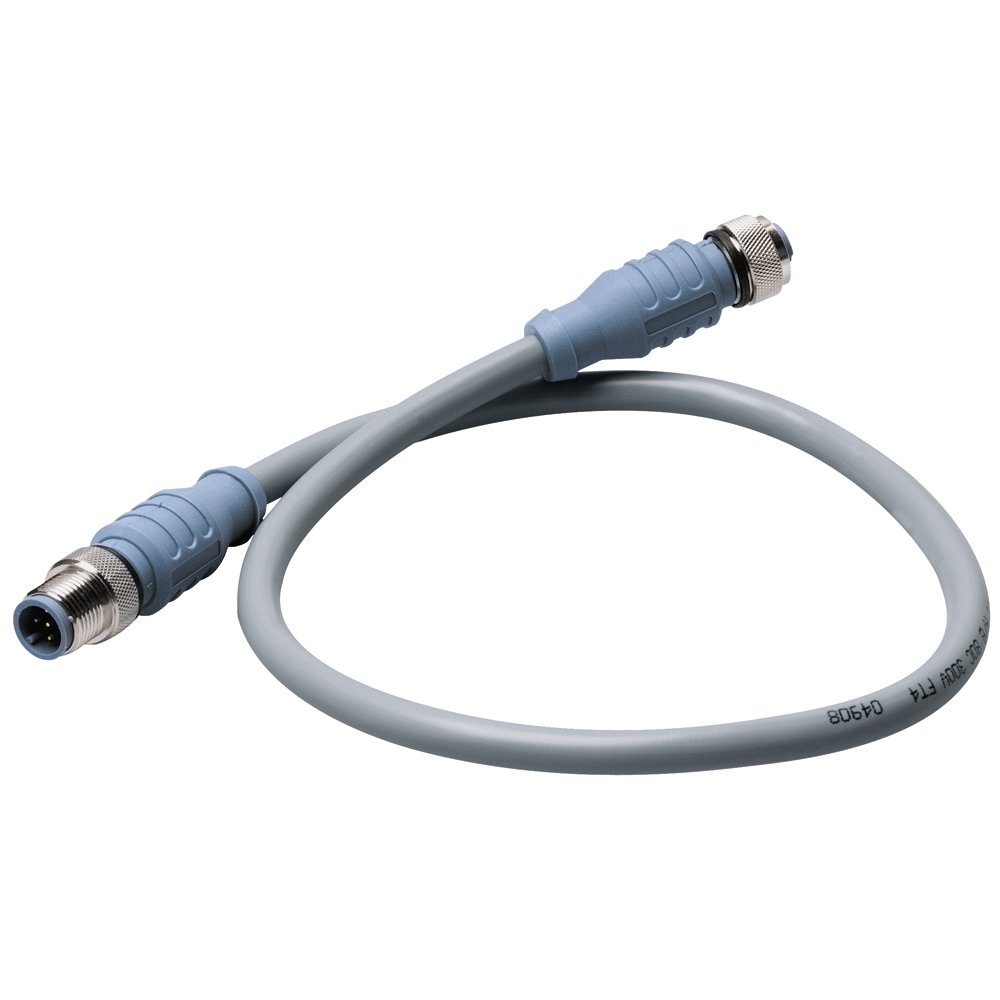

Maretron CM-CG1-CF-10.0 NMEA 2000 Micro Double-Ended Cordset 10 Meter Male to Female

The Maretron CM-CG1-CF-10.0 is a 10-meter NMEA 2000 certified micro double-ended cordset designed specifically for backbone applications due to its extended length. This male-to-female cable provides reliable connectivity for extending your marine network backbone with professional-grade construction and full NMEA 2000 compliance.

Key Features:

• NMEA 2000 certified for guaranteed compatibility with compliant marine electronics
• 10-meter length ideal for backbone extensions and longer network runs
• Male to female configuration for direct backbone connectivity
• Compact 0.59-inch connector outside diameter for space-efficient installations
• Triple-level shielding (overall foil, power pair foil, data pair foil) ensures signal integrity
• IP68 and NEMA 1/3/4/6P rated for complete waterproof protection
• 4-amp current rating at 250V for reliable power delivery
• Wide temperature range: -40°F to 176°F (-40°C to 80°C)
• UL and CSA approved with sunlight-resistant PVC outer jacket

Technical Specifications:

• Cable construction: 4 x 22 AWG conductors plus 22 AWG drain wire
• Conductor insulation: HDPE for data pair, SRPVC for power pair
• Connector body: Thermoplastic PUR in blue-gray
• Contact material: Brass with gold plating for corrosion resistance
• Coupling nut: Brass with nickel plating
• Certifications: UL PLTC 75°C sunlight resistant, CSA CMX-OUTDOOR-CMG

This cordset is engineered for demanding marine environments with rugged construction, superior shielding, and comprehensive environmental protection. The 10-meter length makes it perfect for larger vessels requiring extended backbone runs while maintaining signal quality and network reliability.
