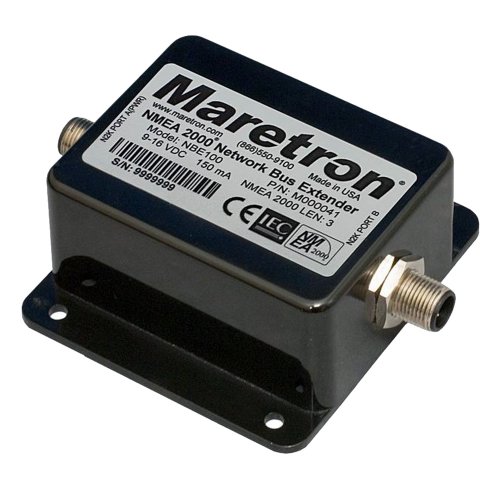

Maretron NBE100-01 NMEA 2000 Network Bus Extender

The Maretron NBE100-01 Network Bus Extender allows you to expand beyond the standard limitations of NMEA 2000 networks, making it ideal for large marine installations. NMEA 2000 networks are typically limited to 50 nodes, a 200-meter trunk length, and 78 meters of cumulative drop length. The NBE100 solves these constraints by splitting your network into two electrical segments that function as a single logical network.

How It Works:

Simply disconnect your network trunk in the middle and connect both ends to the NBE100 along with additional termination resistors. This creates two separate electrical segments, each supporting up to 50 nodes for a total of 100 nodes on your network. The NBE100 transparently routes all NMEA 2000 messages between segments while using advanced priority-based routing to ensure critical messages are always transmitted first.

Key Features:

• Segments a single large NMEA 2000 network into two smaller electrical segments
• Doubles maximum node count from 50 to 100 devices on a logical network
• Extends maximum trunk length beyond the standard 200-meter limitation
• Extends cumulative drop length beyond the standard 78-meter limitation
• Transparent operation—all devices function as if on a single network
• Priority-based message routing ensures critical data transmission
• Optical isolation between segments increases signal integrity and network reliability
• Eliminates bus errors caused by exceeding NMEA 2000 specifications

The NBE100 is an essential component for professional marine electronics installations on larger vessels where standard NMEA 2000 network limitations would otherwise require complex workarounds or multiple independent networks.
