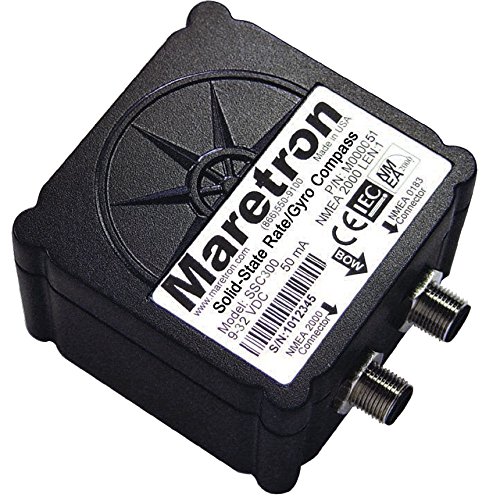

Maretron SSC300-01 Solid-State Rate/Gyro Compass without Cables

The Maretron SSC300-01 is a second-generation solid-state rate/gyro electronic compass that delivers exceptional accuracy and reliability for marine navigation applications. This advanced compass provides better than 0.7° heading accuracy in static conditions through ±45° of roll and pitch angle, with better than 1° roll and pitch accuracy. Factory calibrated for maximum precision, it outputs heading information ten times per second and vessel attitude data including pitch and roll readings once per second.

Key Features:

• Better than 0.7° heading accuracy in static conditions
• Better than 1.5° heading accuracy in dynamic conditions
• Better than 1°/second rate of turn accuracy
• Better than 1° pitch and roll accuracy
• Three-axis magnetometer, three-axis rate gyro, and three-axis accelerometer
• Micromachined 3-axis rate gyro with advanced stabilization algorithms
• Automatic deviation calibration with advanced digital filtering
• Simultaneous NMEA 0183 and NMEA 2000 data output
• IP67 waterproof enclosure for harsh marine environments
• Certified to NMEA 2000 network standard

The SSC300-01 utilizes sophisticated stabilization algorithms that combine data from its micromachined sensors to provide stable, accurate readings even during dynamically changing conditions such as hard turns or rough seas. This makes it an ideal heading sensor for autopilot systems, radar overlay applications, and satellite antenna stabilization. The unit connects directly to any NMEA 2000 network and is compatible with navigational software, chart plotters, autopilots, and dedicated instrument displays including Maretron's N2KView vessel monitoring system and DSM150/DSM250 color graphics displays.

Applications:

• Marine navigation and chart plotting
• Autopilot heading reference
• Radar stabilization and overlay
• Satellite antenna stabilization
• Swing meter applications

Note: This version does not include cables. Optional NMEA 0183 cable accessory required for NMEA 0183 connectivity.
