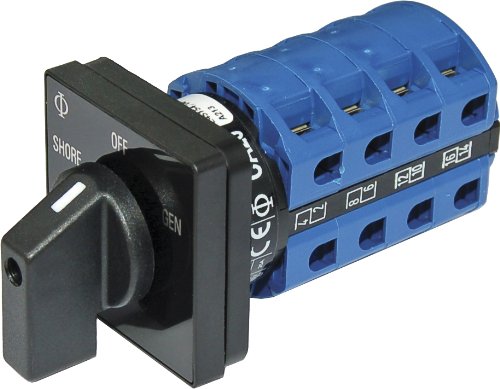

Compact rotary switches that separate AC current loads and are easy to use
Two sources of AC power, if connected, create a very dangerous situation. Blue Sea Systems rotary switches provide a safe method of controlling multiple sources of AC power. Ideal for boats with AC generators, inverters or multiple shore power connections with circuit protection already in place.These compact switches prevent two sources of AC current from powering the same circuit simultaneously. Heavy-duty contacts and positive step cam mechanisms offer smooth contact closure. Choose a switch to handle 2 or 3 power sources depending on the application; switches that can accept 3 sources also provide two load circuits out. Manage AC power safely with one of these compact selector switches.
Key Features
- Safely switches 2 or 3 AC power sources
- Compact footprint allows easy installation; mounts in panels up to 1/8"
- Smooth step cam mechanism for intuitive, indexed switching
- Compatible with 360 panels
- Requires circuit protection to be provided elsewhere
- Heavy duty industrial quality switch
- Five-year warranty
| Specifcations | 6337 | 9009 | 9010 | 9011 | 9019 | 9077 | 9083 |
|---|
| Positions | 2 + OFF | 2 + OFF | 3 + OFF | 2 + OFF | 2 + OFF | 3 + OFF | 2 + OFF |
| Source Selection | 3 | 2 | 3 | 2 | 2 | 3 | 3 |
| Nominal Voltage | 120V | 120V | 120V | 120V | 240V | 240V | 120V, 240V |
| Poles | 4 | 2 | 2 | 2 | 3 | 3 | 4 |
| Load Circuits Out | 2 | 1 | 1 | 1 | 1 | 1 | 2 |
| Maximum Amperage | 30A | 30A | 30A | 65A | 65A | 65A | 65A |
| Maximum Voltage | 600V | 600V AC | 600V AC | 600V AC | 600V AC | 600V AC | 600V AC |
| Source In | 3 | 2 | 3 | 2 | 2 | 3 | 3 |
| Height | 17/8" | 1 7/8"in | 1 7/8"in | 2 1/2"in | 2 1/2"in | 2 1/2"in | 2 1/2"in |
| Width | 1.875 | 1 7/8"in | 1 7/8"in | 2 1/2"in | 2 1/2"in | 2 1/2"in | 2 1/2"in |
| Depth | 3" | 1.91in | 2 3/8"in | 2 3/8"in | 1 3/8"in | 5 1/2" | 4 1/2" |
