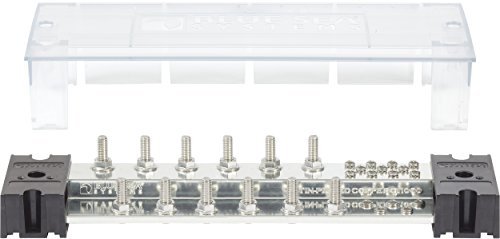

Blue Sea Systems 1993 PowerBar 1000 Busbar 12x 5/16" Terminal Studs with Cover

The Blue Sea Systems PowerBar 1000 is a high-capacity electrical distribution busbar designed for complex marine and automotive wiring systems. This 1,000 amp busbar features 12 terminal studs with 5/16" threading, providing a single consolidation point for both large and small conductors while eliminating wire clutter in sophisticated electrical installations.

Key Features:

• 1,000 amp continuous rating for large complex wiring systems
• Tin-plated pure electrical copper (C11000) construction for maximum conductivity and corrosion resistance
• Innovative stepped bus design with two elevations doubles wire loom density compared to traditional busbars
• Compatible busbar and fuse block elevations allow multiple fuse block attachment without connecting cables
• One-piece serrated flange nuts ensure correct torque and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Can be cut to shorter lengths to fit constricted installation spaces
• Bi-directional end caps allow ganging of additional busbars for expanded capacity
• Snap-on insulating cover meets ABYC and USCG safety requirements with integrated label recess

Specifications:

• Terminal Studs: 12 x 5/16" threaded studs
• Continuous Rating: 1,000 amps
• Bus Material: Tin-plated copper C11000
• Mounting: Accepts #10 (M5) screws
• Includes insulating cover and hardware

Ideal for consolidating multiple battery banks, inverters, charging systems, and high-current accessories in marine vessels, RVs, and commercial vehicles. The stepped design and versatile stud configuration make this busbar an essential component for professional-grade electrical system installations.
