Blue Sea Systems 1992 PowerBar Busbar Terminal Studs with Cover - 1000A 8

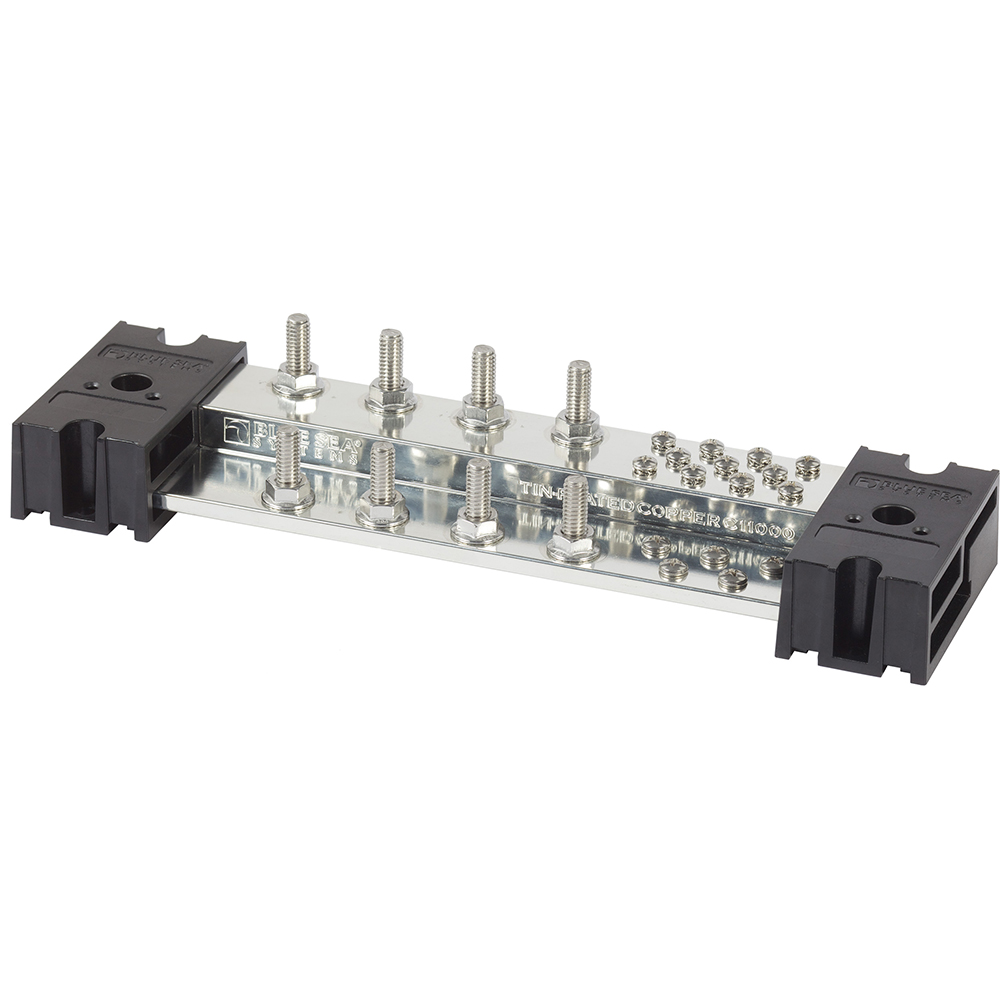

The Blue Sea Systems PowerBar 1000 is a high-capacity busbar designed for complex marine and RV electrical systems requiring consolidated power distribution. This 1,000 amp busbar features 8 terminal studs in 5/16" size, providing reliable connections for large and small conductors, fuse blocks, and other electrical components.

Key Features:

• 1,000 amp continuous rating for demanding electrical systems
• Constructed from tin-plated pure electrical copper (C11000) for maximum conductivity and corrosion resistance
• Innovative stepped bus design with two elevations doubles wire density compared to traditional busbars
• Compatible elevation with common fuse blocks allows direct mounting without connecting cables
• Eight 5/16" terminal studs with one-piece serrated flange nuts for secure connections
• Stainless steel 8-32 screws with captive lock washers for smaller gauge wire attachment
• Can be cut to shorter lengths to fit confined installation spaces
• Bi-directional end caps enable ganging multiple busbars together
• Snap-on insulating cover meets ABYC and USCG safety requirements with integrated label recess

Specifications:

• Continuous Rating: 1,000 Amps
• Number of Terminal Studs: 8
• Terminal Stud Size: 5/16"
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts #10 (M5) screws

Ideal for consolidating power distribution in boats, RVs, and other 12V/24V DC systems where multiple circuits need to connect to a common power source. The included protective cover ensures safe installation in accordance with marine electrical standards.
