Uflex MM11 Power A Electronic Control Package Single Engine Single Station

The Uflex MM11 Power A Mark II Electronic Control Package provides a complete single-engine, single-station solution with mechanical throttle and mechanical shift control. This advanced marine control system utilizes a private protocol CAN bus for reliable data transmission and features Plug'N Play connectivity for straightforward installation.

Power A Mark II System Features:

• Private protocol CAN bus for secure data transmission
• Modular system design for flexible configuration
• Direct communication with electronic engines via SAE J1939 or NMEA 2000
• Supports connection of multiple stations (up to 4 controls)
• Automatic engine synchronization capability
• Dock Assist functionality for enhanced maneuverability
• Fully programmable shift delays for customized operation

Complete MM11 Package Includes:

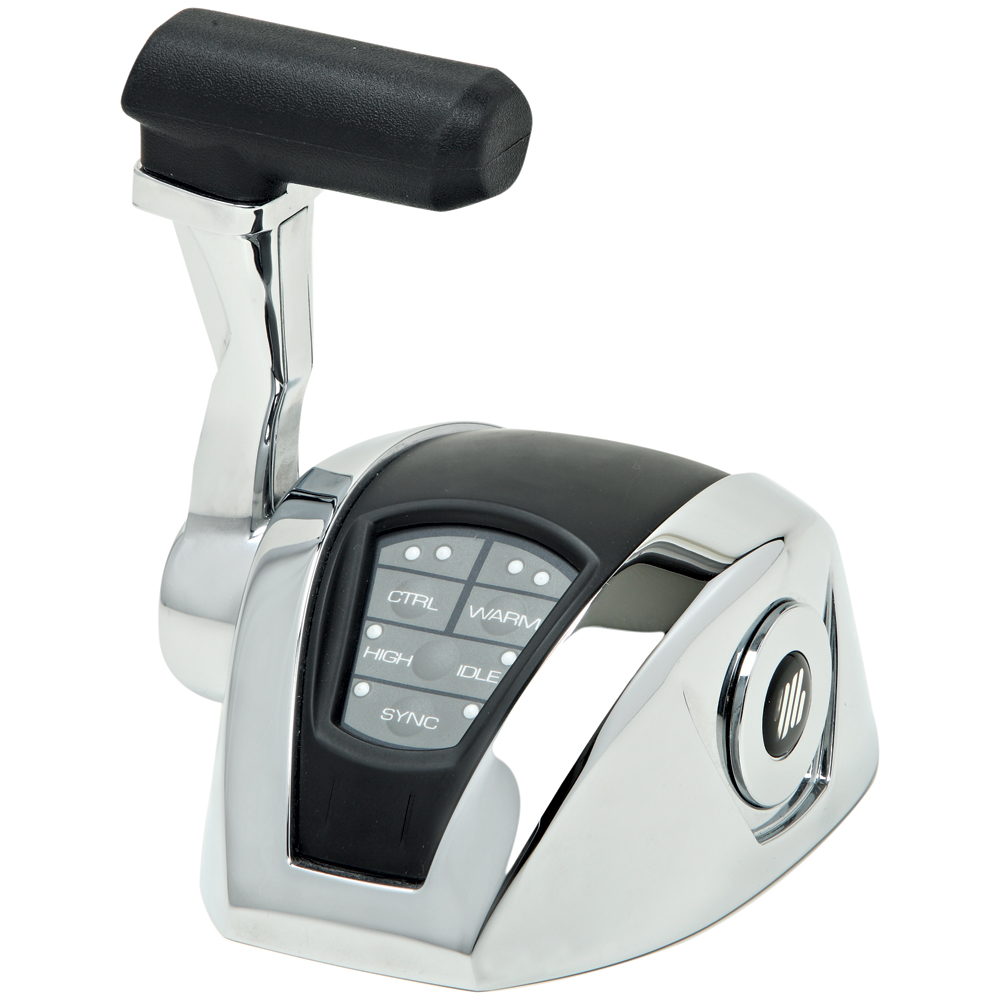

• (1) PA2-B1 Single Lever Control without Trim (42009G)
• (1) PA2-CU Control Unit with LED Diagnostic and Programming Screen (42017F)
• (2) PA2-MA Electro Mechanical Actuators for Shift and Throttle (42027J)
• (1) PA2-NT Network Terminator (42028L)
• (1) M-P3 Main Power Supply Cable, 9.8 feet (42053K)
• (1) CAN-10 Network Connection Cable, 33 feet (71021K)
• (2) CAN-1 Network Connection Cables, 3 feet each (73639T)
• (1) PA2-PU Power Supply Unit for 12V Systems (42026G)
• (2) M-PE1 Power Extension Cables, 3.3 feet each (42056S)

This comprehensive package includes everything needed for a professional marine control installation, from the single lever control to all necessary wiring and actuators. The system's modular design allows for future expansion and integration with compatible electronic engine systems.
