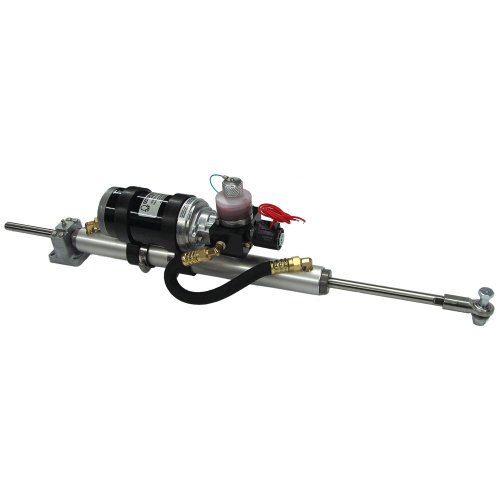

Octopus Autopilot Drives OCTAF1212LAM12 12" Stroke Hydraulic Linear Actuator 12V 38mm

The Octopus OCTAF1212LAM12 is a hydraulic linear actuator designed to provide reliable autopilot steering control for boats equipped with mechanical steering systems. This complete assembly combines an Octopus reversing pump with a marine-grade hydraulic cylinder, mounting directly to the rudder tiller-arm or quadrant for efficient autopilot integration.

How It Works:

When the autopilot is disengaged, the cylinder moves freely with the rudder, allowing normal manual steering. Upon autopilot activation, an integrated solenoid valve closes and locks the cylinder in place. The DC motor then drives the reversing pump to extend and retract the cylinder based on steering signals from the autopilot computer. When de-energized, the solenoid valve instantly disconnects the autopilot from the rudder for immediate manual control.

Key Features:

• 12-inch (305mm) stroke length for precise rudder control
• 38mm cylinder bore delivers up to 400kg (882 lbs) peak thrust
• Maximum rudder torque capacity of 1,200 Nm (10,600 lb-in)
• Variable flow rate from 600cc to 1.2 liters per minute
• 12V DC operation with average current draw of 4-6 amps (19 amp max)
• Translucent oil reservoir for easy fluid level inspection
• Only five moving parts for exceptional reliability
• Pre-filled with hydraulic fluid—no additional plumbing required
• Suggested hardover time of 14-16 seconds
• Suitable for vessels up to 18 meters (60 feet) in length

Advantages:

The mechanical simplicity of this hydraulic actuator design offers superior reliability and easier maintenance compared to complex gear-driven or screw-type actuators. With minimal moving parts and straightforward operation, the OCTAF1212LAM12 has become a trusted choice for offshore mariners who demand dependable autopilot performance in demanding conditions.

This actuator arrives factory-filled and ready for installation, eliminating the need for hydraulic line routing or fluid charging during setup.
