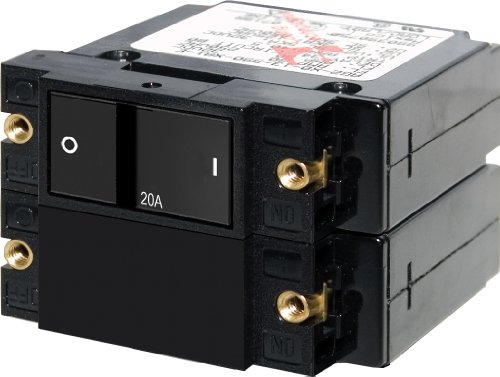

Blue Sea Systems 7413 A-Series Double Pole Rocker Circuit Breaker 20A

The Blue Sea Systems 7413 A-Series Flat Rocker Circuit Breaker provides reliable 20-amp overcurrent protection for both AC and DC electrical systems. This double pole magnetic hydraulic circuit breaker features a trip-free design that prevents the breaker from being held in the ON position during a fault condition, ensuring optimal safety for marine, RV, and other mobile electrical applications.

Key Features:

• Double pole configuration for simultaneous switching of both conductors
• Trip-free magnetic hydraulic design cannot be held ON during fault conditions
• Color-coded actuator clearly indicates OFF position
• International ON/OFF symbols support vertical or horizontal mounting flexibility
• Flat rocker actuator style for clean, modern appearance
• High interrupt capacity: 3000A at 240V AC, 5000A at 32V DC
• Wide operating temperature range from -40°C to 85°C
• Stainless steel terminal and mounting screws for corrosion resistance
• Rated for 10,000 switching cycles

Technical Specifications:

• Amperage Rating: 20A AC / 20A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Poles: 2 (Double Pole)
• Actuator Style: Flat Rocker
• Circuit Breaker Type: Magnetic Hydraulic, Trip-Free
• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC (TUV) / 5000A @ 32V DC
• Terminal Screw: #10-32 Stainless Steel (torque: 14 in-lb / 1.58 Nm)
• Mounting Screw: #6-32 Stainless Steel (torque: 6 in-lb / 0.68 Nm)
• Operating Temperature: -40°C to 85°C
• Weight: 0.38 lbs (0.17 kg)

Ideal for protecting electrical circuits in boats, yachts, RVs, and other applications requiring reliable overcurrent protection in demanding environments. The compact design and flexible mounting options make installation simple in tight spaces.
