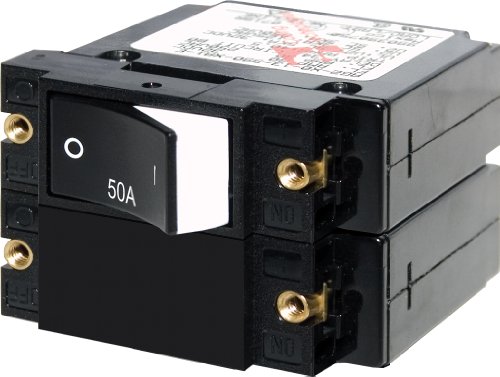

Blue Sea Systems 7577 A-Series Double Pole Rocker Circuit Breaker 50A

The Blue Sea Systems 7577 A-Series raised rocker circuit breaker provides reliable 50-amp overcurrent protection for both AC and DC marine electrical systems. This double pole magnetic hydraulic circuit breaker features a trip-free design that automatically interrupts power during fault conditions and cannot be held in the "ON" position when a fault is present.

Key Features:

• Double pole configuration for dual circuit protection
• Raised rocker actuator with color indication for "OFF" position
• Trip-free magnetic hydraulic operation prevents override during fault conditions
• International ON/OFF symbols support vertical or horizontal mounting
• High interrupt capacity: 3000A at 240V AC, 5000A at 32V DC
• Stainless steel mounting and terminal screws for corrosion resistance
• Wide operating temperature range: -40°C to 85°C

Technical Specifications:

• Amperage Rating: 50A AC / 50A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Mounting Screw: #6-32 stainless steel (torque to 6 in-lb)
• Terminal Screw: #10-32 stainless steel (torque to 14 in-lb)
• Rated for 10,000 switching cycles
• Weight: 0.38 lbs

Ideal for marine, RV, and mobile applications requiring dependable circuit protection in harsh environments. UL 1077 recognized and meets TUV standards.
