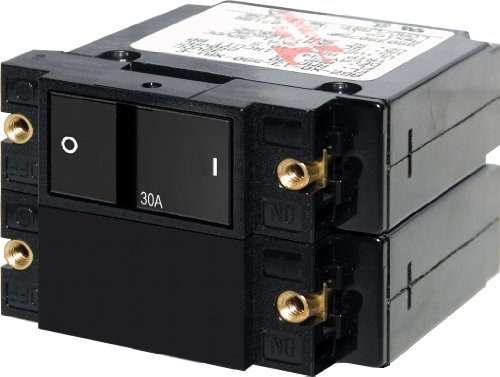

Blue Sea Systems 7414 A-Series Double Pole Rocker Circuit Breaker - 30A

The Blue Sea Systems 7414 A-Series flat rocker circuit breaker provides reliable overcurrent protection for both AC and DC marine electrical systems. This double pole, 30-amp magnetic hydraulic circuit breaker features a trip-free design that prevents the breaker from being held in the "ON" position during fault conditions, ensuring maximum safety.

Key Features:

• Double pole configuration protects both positive and negative conductors
• Color actuator clearly indicates "OFF" position for quick status verification
• Trip-free magnetic hydraulic design cannot be overridden during faults
• International ON/OFF symbols support vertical or horizontal mounting flexibility
• Rated for 30A AC or 30A DC applications
• High interrupt capacity: 3000A at 240V AC, 5000A at 32V DC
• Wide operating temperature range from -40°C to 85°C
• Stainless steel terminal and mounting screws resist corrosion
• Rated for 10,000 switching cycles

Technical Specifications:

• Amperage Rating: 30A AC / 30A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Actuator Style: Flat rocker
• Poles: 2
• Terminal Screw: #10-32 stainless steel (14 in-lb torque)
• Mounting Screw: #6-32 stainless steel (6 in-lb torque)
• Weight: 0.38 lbs (0.17 kg)

This circuit breaker is ideal for protecting sensitive electronic equipment, navigation systems, and other critical marine electrical circuits where reliable overcurrent protection is essential.
