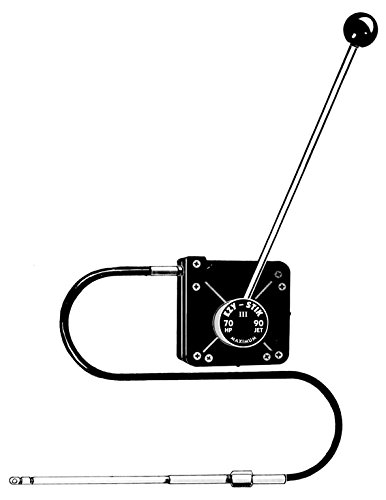

Ezy-Glide 840-1000 Stik II Mechanical Stick Steering System 10 Foot

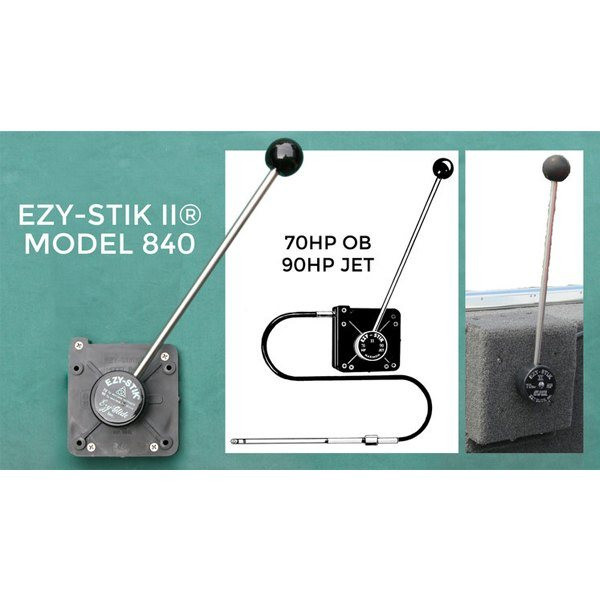

The Ezy-Glide Stik II Model 840 is a complete mechanical stick steering system designed to position the operator in the front of the boat for improved visibility and convenience. This 10-foot system features a 112-inch actual reach, making it ideal for a wide range of small to mid-size boats with outboard or jet drive propulsion.

Key Features:

• One-piece stainless steel drive spool for durability and smooth operation
• High-impact composite housing provides superior strength and weather resistance
• 6.4:1 steering ratio delivers mechanical advantage for easier control
• Internal threaded driveshaft for improved lever-to-driveshaft connection
• 58-inch total handle travel with 206-degree movement arc
• 6-inch lever length for comfortable operation
• Interlocking shaft and lever design ensures secure connection

Specifications:

• Cable Length: 10 feet

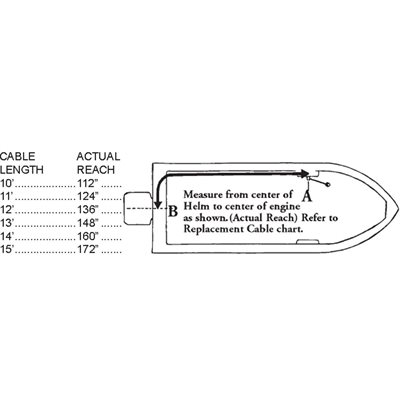

• Actual Reach: 112 inches
• Maximum Outboard Engine Rating: 70 HP
• Maximum Jet Drive Rating: 90 HP
• Housing Dimensions: Approximately 6 inches x 6 inches
• Steering Ratio: 6.4:1

The slower ratio of the Ezy-Stik II provides the added mechanical advantage needed for higher horsepower engines and 4-stroke outboards. This complete kit includes the helm assembly, steering lever, push-pull cable, mounting hardware, and dress cover—everything needed for installation. Meets or exceeds NMMA/ABYC standards for marine steering systems.

Note: Ezy-Glide recommends using only 80 Below Action Lube for proper system lubrication and maintenance.
