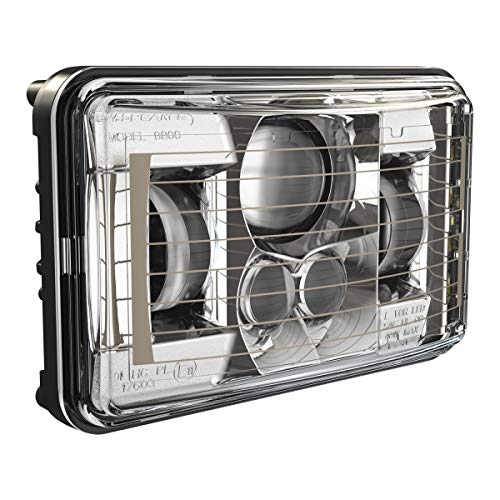

J.W. Speaker 0551771 Model 8800 Evolution 2 Heated 4x6 LED Low Beam Headlight Chrome Bezel

The J.W. Speaker Model 8800 Evolution 2 is a high-performance 4×6″ LED headlight featuring SmartHeat® heated lens technology, and is the industry's first to meet proposed NHTSA guidelines for a 5-Star NCAP-compliant low beam headlight. This DOT/ECE certified headlight is designed for right-hand traffic (RHT) and operates on 12-24V systems with a chrome bezel finish.

SmartHeat® Heated Lens Technology:

• Features a thermally conductive grid system that de-ices the lens up to twice as fast as other lights, with an intelligent system that reacts to temperature changes in real-time with no driver action required
• Engineered for extreme temperatures to keep low beam lights fully functional for years
• Superior condensation management to prevent moisture buildup

Construction and Specifications:

• Hardcoated polycarbonate lens with die-cast aluminum housing in black with chrome bezel
• Dimensions: 6.6" length × 4.22" height × 3.34" depth
• Raw lumen output: 2,830
• Operates from 9-32V DC with current draw of 3.30A at 12V or 1.67A at 24V
• Operating temperature range: -40°F to 149°F
• H4 connector (AMP #172615-2 mating connector)

Installation and Compliance:

• Drop-in replacement for any 4" × 6" headlight, retrofits 1A1 and 2A1 sealed beams
• Complies with FMVSS 108, ECE Reg 112, Buy America Standards, and IEC IP69K
• DOT-compliant for legal road use in the U.S., meeting section 108 requirements of Federal Motor Safety Standards, with compliance clearly etched on the lens
• Ideal for heavy-duty trucking applications with improved light output, glare reduction, and optimized light placement

The heavy-duty die-cast casing provides ultimate durability with added protection from salt spray for efficient thermal management. Each unit is sold individually and includes low-profile panel mount hardware.
