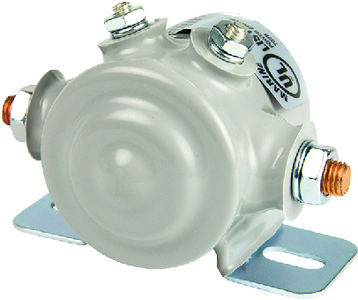

BEP Marine 1002205 PVC Coated Continuous Duty Solenoid 85A

The BEP Marine 1002205 is a heavy-duty continuous duty solenoid designed to remotely switch high amperage loads using a low amperage on-off switch. This solenoid is ideal for marine electrical systems where reliable remote switching of high-current circuits is required.

Key Specifications:

• Continuous duty rating: 85A
• Intermittent rating: 100A for 10 seconds
• Copper signal terminals with #10-32 thread
• Copper contact terminals with 5/16"-24 thread
• Durable PVC coated steel case for corrosion resistance
• Bracket mounting holes: 5/16" x 19/32", spaced 2 13/64" on centers
• UL and CE approved for safety and quality assurance

This continuous duty solenoid provides reliable performance in demanding marine environments. The PVC coating protects the steel case from saltwater corrosion, while the copper terminals ensure excellent electrical conductivity. Perfect for battery isolation, windlass operation, thruster control, and other high-current marine applications.
