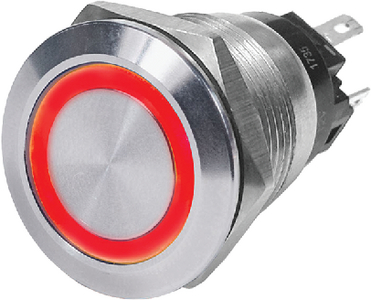

Blue Sea Systems 4162 Push Button Switch with LED Ring, Red, Off-On, 10A

The Blue Sea Systems 4162 is a stainless steel push button switch featuring an independent LED ring illumination in red. Designed for marine and automotive applications, this versatile switch delivers reliable OFF-ON switching with a 10A continuous rating at 12V DC.

Key Features:

• Stainless steel construction for corrosion resistance
• Independent LED ring illumination with separate power contacts
• Versatile wiring options: can be configured for normally open or normally closed operation
• Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configurations
• Quick and easy installation with 0.110" quick connect terminals (included in retail package)
• Rated for 18,000 switching cycles for long-term reliability
• Operating temperature range: -10°C to 70°C

Technical Specifications:

• Current Rating: 10A @ 12V DC continuous
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Mounting Hole Diameter: 19mm
• Termination: Five 0.110" quick connect terminals
• Storage Temperature: -55°C to 85°C

This push button switch is ideal for controlling accessories, lighting circuits, bilge pumps, and other electrical systems in marine vessels, RVs, and automotive applications where a illuminated momentary or maintained contact switch is required.
