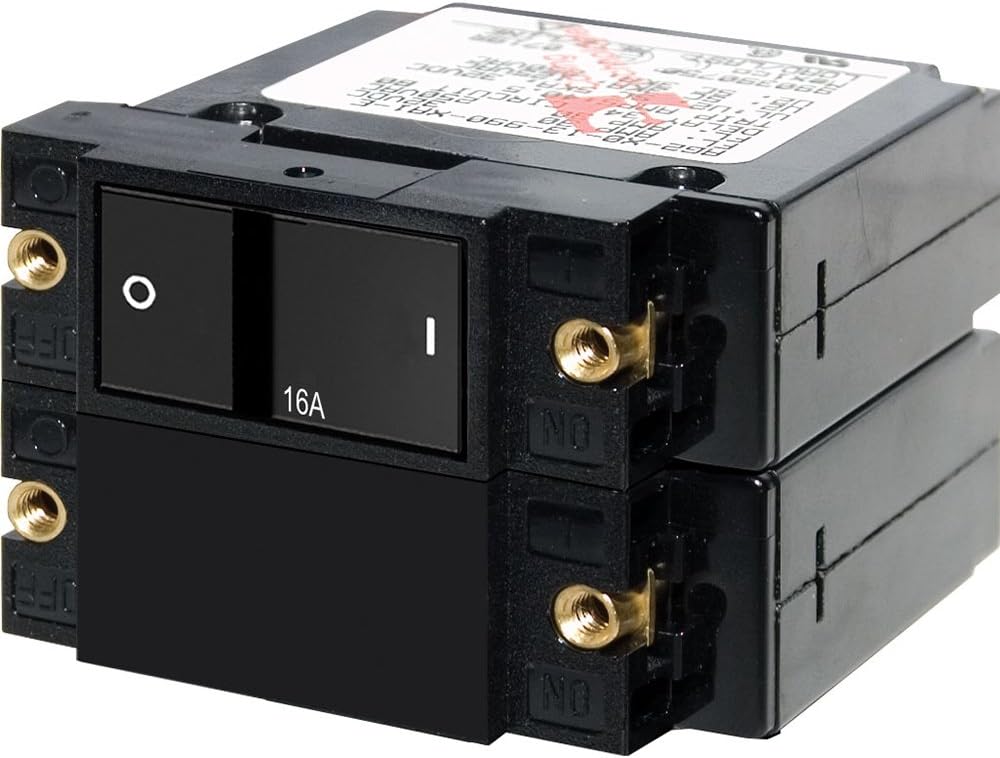

Blue Sea Systems 7412 A-Series Double Pole Rocker Circuit Breaker - 16A

The Blue Sea Systems 7412 A-Series Flat Rocker Circuit Breaker provides reliable 16-amp circuit protection for marine and automotive electrical systems. This double-pole magnetic hydraulic circuit breaker features a trip-free design that prevents the breaker from being held in the "ON" position during fault conditions, ensuring safe operation.

Key Features:

• Double-pole configuration with 16A AC/DC rating
• Trip-free magnetic hydraulic design for safe fault protection
• Color-coded actuator clearly indicates OFF position
• International ON/OFF symbols support vertical or horizontal mounting
• High interrupt capacity: 3000A @ 240V AC, 5000A @ 32V DC
• Wide operating temperature range: -40°C to 85°C
• Rated for 120V AC, 240V AC, or 32V DC systems
• Stainless steel terminals and mounting hardware
• 10,000 switching cycle rating

Technical Specifications:

• Amperage: 16A AC / 16A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Terminal Screws: #10-32 stainless steel (14 in-lb torque)
• Mounting Screws: #6-32 stainless steel (6 in-lb torque)
• Weight: 0.38 lbs (0.17 kg)

Ideal for protecting electrical circuits in boats, RVs, and other marine or mobile applications where reliable overcurrent protection is essential.
